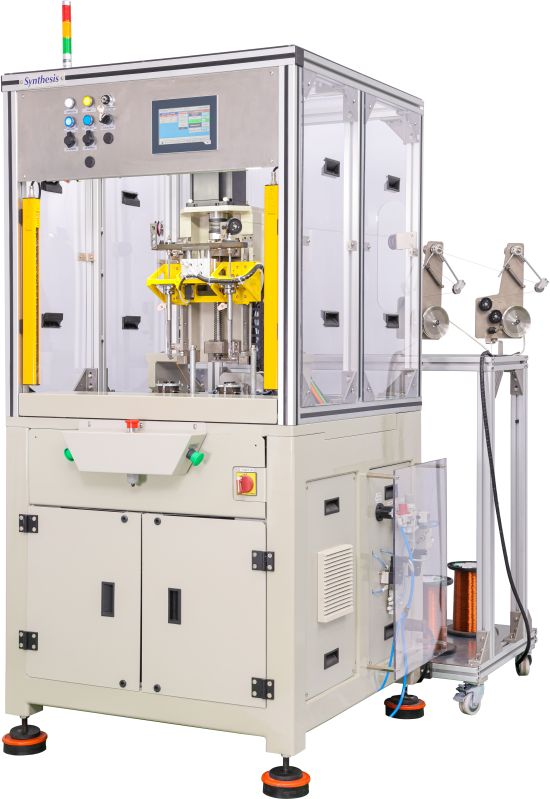

IST2 Internal Stator Needle Winding Machine, Phase : 3 Phase

Product Description

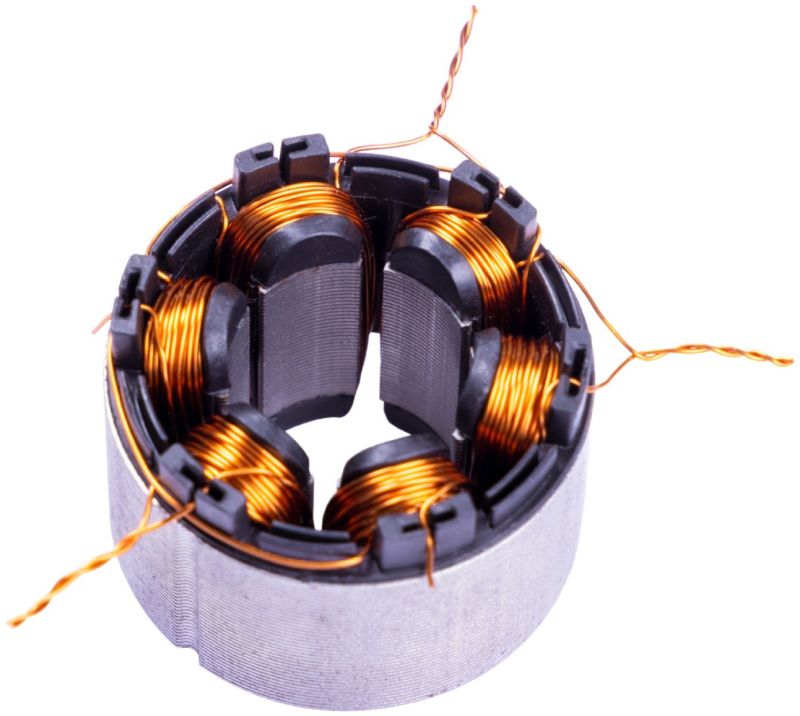

• This dual station machine is designed to wind internal stators/in-flux motor stators. With a fully automatic needle-type winding head engineered to carry wire through the stator slots, copper consumption is drastically reduced compared to conventional winding techniques.

Features

• Completely automatic operation with Needle Type Winding Head (Single and Dual Station options) engineered to carry wire through the stator slots with high speeds.
• The machines are PLC-controlled and deliver a high level of accuracy with AC Servo motors coupled to precision mechanics in each axis.
• Automatic Core Indexing driven by AC servo motor with infinitely programable indexing angle to achieve different winding positions and wire routing paths.
• Coordinated movement of winding head, core indexer, and head traverse to achieve very complex wire routing configurations with ease.
• An optimum combination of mechanical, pneumatic, and electronic systems incorporated in the machine provides high performance coupled with reliable operations and simplicity in maintenance.
• Electronic wire tension control through PLC to achieve precise tension. Programmable tension for different stages of winding facilitates achieving better-winding quality and flexibility in routing.
• Robust machine frame to dampen the vibrations & withstand large loads generated during high-speed winding.
