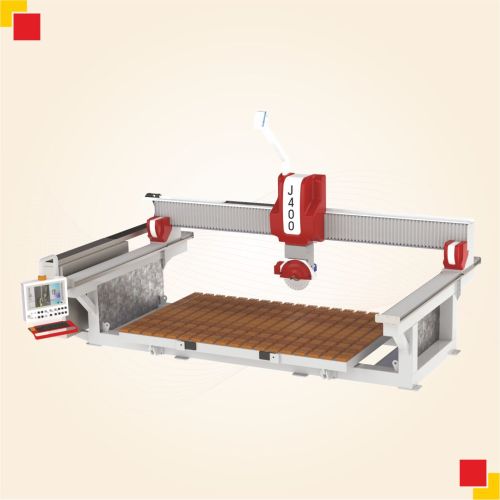

SBMPL bridge cutting machine J-400 is designed with a focus on maximum quality and reliability over time, ensuring consistent performance. The machine operates 4/5 optional interpolated axes, providing enhanced flexibility for a wide range of work processes. The machine is capable of working with various materials including marble, granite, artificial stone and ceramic. It is designed to be compact and simple allowing for easy transport, installation and operations. It offers users the flexibility to carry out a diverse range of work processes making it suitable for different applications with the stone and building industry.
Key Features :
| PARAMETER | VALUE | VALUE |
|---|---|---|
| Number of Interpolated Axis | N | 4/(5 Optional) |
| Carriage Stroke X Axis | mm | 3635 |
| Maximum Carriage Speed (X Axis) | m/min | 0-40 |
| Bridge Stroke (Y Axis) | mm | 1460 mm |
| Maximum Bridge Speed (Y Axis) | m/min | 0-40 |
| Vertical Stroke (Z Axis) | mm | 285 mm |
| Maximum Head Speed (Z Axis) | m/min | 0-8 |
| Blade-Carrying Head Rotation C Axis | Deg | -5/365 |
| Disc Head Tilting Movement (Axis A) | Deg | 0/90 |
| Working Table Dimensions | mm | 3600/1350 |
| Spindle Motor Power | Kw | 07/09/11 |
| Spindle Motor Speed Range | rpm | 0-4500 |
| Max Disc Diameter | mm | 400 |
| Maximum Cutting Depth | mm | 125 |
| Water Consumption | l/min | 25-30 |
| Standard Electric Voltage | V/Hz | 400 +- 10% / 50 |
| Total Installed Power | Kw | 14/(1.3 Optional A Axis) |
| Auxillary Sindle Installed Power (Optional) | Kw | 7.5 |
