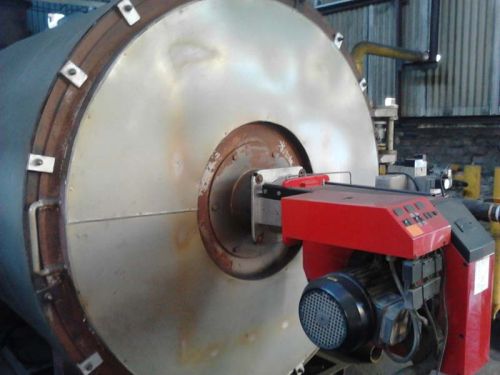

Thermic Fluid Heater 3 Pass Horizontal Wet Back Jacketed

J.D.Engineers offers 3-Pass Wet-Back Jacketed type Thermic Fluid Heaters heavy oil, light oil, gas and other fuels, etc without compromising on performance. Our heaters are available in Dual Fuel oil & gas firing versions so that you get the advantage of economically available fuels.
This is fully automatic horizontal Vertical coil type 3-pass wet back oilgas fired, forced draft system.
It incorporates an integral combustion chamber arranged as a nest of concentric helical tube coil fabricated out of seamlesshigh heat resistant ERW boiler tubes recommended for high temperature application.
The concentric coils are placed within a shell fabricated out of Mild Steel.
The wet back jacket and concentric coil allows three flues passes to ensure low heat release and maximum heat transfer. The design warrants little amount of refractory work on the hinged door to keep thermal inertia low.
The 3-pass wet back design ensures maximum absorption of heat and flue gas temperature at less than 300°C in a standard heater.
Features
IMPORTED BURNER
The heater is equipped with a fully ultimate pressure atomizing type 2-stage, 3-stage or modulating oilgas burner.
The Burner is a mono-block construction and can be hinged to left or right.
It simplifies the work of combustions head diffuser, nozzles and ignition electrodes. Preheated version burners are used for heavy oil firing which are equipped with electric or media oil pre-heaters which are heated nozzle heads and oil line systems.
This ensures availability of evenly heated oil for flame establishment.
The nozzle recirculation and positive shut off at the nozzle tip ensures trouble free operation even if temperature drops to below 0°C.
CAPACITY OF BOILER :50,000 kcalhr TO 50,00,000 KCALhr
