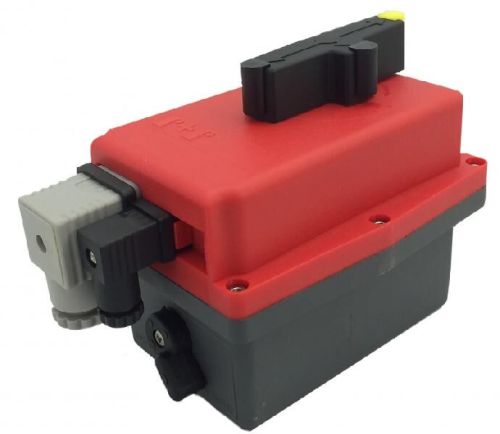

On-Off Max 12Nm Smart Electric Actuator Model J2-H10 110-240V AC or DC :

Overview - Maximum 12Nm 85-240V AC/DC Multi-voltage reversible IP65 failsafe quarter turn smart all plastic electric actuator, with manual override, heater, torque limiter, external Din plug connection and local visual indicator. F03,F04 & F05 x 14mm female star mounting.
Function - Power open, power close. Stays put on external power failure. Designed to have power on at all times.
Sizing Criteria - Max break torque 12Nm. Max run and reseat torque 10Nm. Max ambient temp range -20 to +70C.
Options - 9mm or 11mm female star drive output. ISO5211 F04 mounting.

On-Off Max 12Nm Smart Electric Actuator Model J2-L10 24V AC or DC :

Overview - Maximum 12Nm 24V AC/DC Multi-voltage reversible IP65 failsafe quarter turn smart all plastic electric actuator, with manual override, heater, torque limiter, external Din plug connection and local visual indicator. F03,F04 & F05 x 14mm female star mounting.
Function - Power open, power close. Stays put on external power failure. Designed to have power on at all times.
Sizing Criteria - Max break torque 12Nm. Max run and reseat torque 10Nm. Max ambient temp range -20 to +70C.
Options - 9mm or 11mm female star drive output. ISO5211 F04 mounting.
