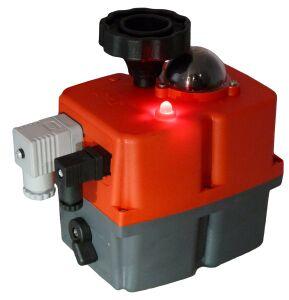

J3C-H 110-240V Smart Electric Valve Actuator

J3C 110-240V Max 38Nm Model J3CH35 On Off :

• Overview: Maximum 38Nm 85-240V Multi-voltage reversible IP67 on-off quarter turn smart electric actuator, with manual override, heater, torque limiter, LED status light, external Din plug connection and dome visual indicator. F03,F04 & F05 x 14mm female star mounting.
• Function: Power open, power close. Stays put on external power failure. Designed to have power on at all times.
• Sizing Criteria: Max break torque 38Nm. Max run and reseat torque 35Nm. Max ambient temp range -20 to +70C.
• Options: Failsafe using internal battery (BSR) kit. Modulating using potentiometer positioner (DPS) kit. Failsafe modulating using BSR & DPS kits. F07 x 17mm female star mounting.

J3C Max 38Nm Model J3CH35 Failsafe :

• Overview: Maximum 38Nm 85-240V Multi-voltage reversible IP67 failsafe quarter turn smart electric actuator, with manual override, heater, torque limiter, LED status light, external Din plug connection and dome visual indicator. F03,F04 & F05 x 14mm female star mounting.
• Function: Power open, power close. Fails to pre-set position (open, or close) on external power failure. Designed to have power on at all times. Supplied with BSR (Battery 'Spring Return') failsafe system pre-installed and function tested.
• Sizing Criteria: Max break torque 38Nm. Max run and reseat torque 35Nm. Max ambient temp range -20 to +70C.
• Options: DPS Modulating function conversion kit to create failsafe modulating function.
• F07 x 17mm female star mounting.

J3C Max 38Nm Model J3CH35DPS Modulating :

• Overview: Maximum 38Nm 85-240V Multi-voltage reversible IP67 modulating quarter turn smart electric actuator, with manual override, heater, torque limiter, LED status light, external Din plug connection and dome visual indicator. F03, F04 & F05 x 14mm female star mounting.
• Function: Continuous external power, movement controlled by DPS (Digital Positioning System) input control signal, typically 4-20mA or 0-10V. Configurable to open, close, or freeze on loss of control signal. Pre-set to fail open, or close on loss of external power failure. Output signal provided. Supplied with DPS system pre-installed and function tested.
• Sizing Criteria: Max break torque 38Nm. Max run and reseat torque 35Nm. Max ambient temp range -20 to +70C.
• Options: BSR Failsafe function conversion kit to create failsafe modulating function. F07 x 17mm female star drive output.

J3C Max 38Nm Model J3CH35-BSR-DPS Failsafe Modulating :

• Overview: Maximum 38Nm 85-240V Multi-voltage reversible IP67 failsafe modulating quarter turn smart electric actuator, with manual override, heater, torque limiter, LED status light, external Din plug connection and dome visual indicator. F03, F04 & F05 x 14mm female star mounting.
• Function: Continuous external power, movement controlled by DPS (Digital Positioning System) input control signal, typically 4-20mA or 0-10V. Configurable to open, close, or freeze on loss of control signal. Pre-set to fail open, or close on loss of external power failure. Output signal provided. Supplied with BSR & DPS systems pre-installed and function tested.
• Sizing Criteria: Max break torque 38Nm. Max run and reseat torque 35Nm. Max ambient temp range -20 to +70C.
• Options: F07 x 17mm female star mounting.
