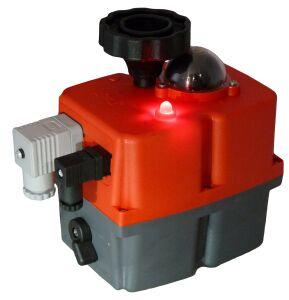

J3C-S 24-240V Smart Electric Actuator

J3C-S20 On Off Smart Electric Actuator 24-240V Break 25Nm Run 20Nm :

• Overview - Maximum 25Nm 24-240V Multi-voltage reversible IP67 on-off quarter turn smart electric actuator, with manual override, heater, torque limiter, LED status light, external Din plug connection and dome visual indicator. F03,F04 & F05 x 14mm female star mounting.
• Function - Power open, power close. Stays put on external power failure. Designed to have power on at all times.

• Sizing Criteria :

  • Max break torque 25Nm.
  • Max run and reseat torque 20Nm.
  • Max ambient temp range -20 to +70C.

• Options :

  • 12V Conversion PCB kit
  • Failsafe using internal battery (BSR) kit.
  • Modulating using digital magnetic positioner (DPS) kit.
  • Failsafe modulating using BSR & DPS kits.
  • 9mm or 11mm female star drive output.

J3C-S20-DPS Modulating 25Nm Smart Electric Actuator 24-240V Break 25Nm Run 20Nm :

• Overview - Maximum 25Nm 24-240V Multi-voltage reversible IP67 modulating quarter turn smart electric actuator, control signal input and output, with manual override, heater, torque limiter, LED status light, external Din plug connection and dome visual indicator. F03,F04 & F05 x 14mm female star mounting.
• Function - Continuous external power, movement controlled by DPS (Digital Positioning System) input control signal, typically 4-20mA or 0-10V. Configurable to open, close, or freeze on loss of control signal. Stays put on loss of external power. Output signal provided. Supplied with DPS system pre-installed and function tested.

• Sizing Criteria :

  • Max break torque 25Nm.
  • Max run and reseat torque 20Nm.
  • Max ambient temp range -20 to +70C.

• Options :

  • 12V Conversion PCB kit
  • BSR Failsafe function conversion kit to create failsafe modulating function.
  • 9mm or 11mm female star drive output.

J3C-S20-BSR Failsafe Electric Actuator 24-240V Break 25Nm Run 20Nm :

• Overview - Maximum 25Nm 24-240V Multi-voltage reversible IP67 failsafe quarter turn smart electric actuator, with manual override, heater, torque limiter, LED status light, external Din plug connection and dome visual indicator. F03,F04 & F05 x 14mm female star mounting.
• Function - Power open, power close. Fails to pre-set position (open, or close) on external power failure. Designed to have power on at all times. Supplied with BSR (Battery 'Spring Return') failsafe system pre-installed and function tested.

• Sizing Criteria :

  • Max break torque 25Nm.
  • Max run and reseat torque 20Nm.
  • Max ambient temp range -20 to +70C.

• Options :

  • 12V Conversion PCB kit
  • DPS Modulating function conversion kit to create failsafe modulating function.
  • 9mm or 11mm female star drive output.

J3C-S20-BSR-DPS Failsafe Modulating Smart Electric Actuator 24-240V Break 25Nm Run 20Nm :

• Overview - Failsafe modulating J3C-S20-BSR-DPS 25Nm 24-240V Multi-voltage reversible IP67 modulating quarter turn smart electric actuator, with manual override, heater, torque limiter, LED status light, external Din plug connection and dome visual indicator. F03, F04 & F05 x 14mm female star mounting.
• Function - Continuous external power, movement controlled by DPS (Digital Positioning System) input control signal, typically 4-20mA or 0-10V. Configurable to open, close, or freeze on loss of control signal. Pre-set to fail open, or close on loss of external power failure. Output signal provided. Supplied with BSR failsafe and DPS modulating systems pre-installed and function tested by J+J UK.

• Sizing Criteria :

  • Max break torque 25Nm.
  • Max run and reseat torque 20Nm.
  • Max ambient temp range -20 to +70C.

• Options :

  • 12V Conversion PCB kit
  • 9mm or 11mm female star drive output.
