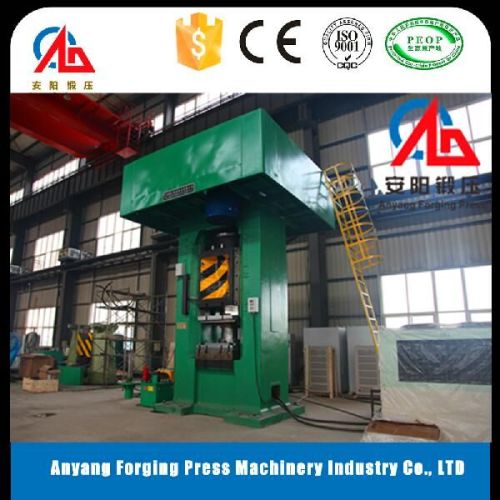

J58K Series CNC Electric Screw Press Machine

₹ 45,000 - ₹ 9 Cr / Set

MOQ1 Set(s)
Machine TypeCNC Electric Screw Press
CertificationCE
Packaging TypeAccording To Customers
ConditionNew
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Anyang Forging Press Machinery Industry Co. Ltd

Member Since 10 Years
Nature of Business Supplier
Year of Establishment 1956

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerElectric Press Machine
CertificationCE
Availability48000 Kg
Packaging TypeAccording To Customers
Country of Origin220-480 V
ConditionNew
ApplicationClosed Die Forging
AutomationAutomatic
Machine TypeCNC Electric Screw Press
Power SourceElectric
Left/right overall dimension3240 mm
Moving parts energy90 KJ
After-sales Service ProvidedAfter-sales Service Provided
Ram stroke500 mm
Min die height600 mm
Guide strip distance707 mm
Left/right ram bottom dimension670 mm
Nominal force6300 KN
Height overall dimension5745 mm
Lower ejecting force150 KN
No. of stroke21/min
Left/right table dimension800 mm
Brand NameAnyang Forging Press
Front/back table dimension920 mm
Front/back overall dimension2670 mm
Lower ejecting methodhydraulic
Front/back ram bottom dimension920 mm
Raw MaterialSteel
Max allowing load (central loading)10000 KN
Lower ejecting stroke150 mm
Height of bolster180 mm
Main motor power110 KW
Height above the ground5245 mm

introduction of j58k series cnc electric screw press machine

j58k series cnc electric screw press is a kind of forging equipment with excellent technology applicability. This press is not only used in hot forging but also used in finish forge and finishing; not only used in stainless steel double bottom pan welding technology but also used in the finish forging of titanium alloy lamina and another lamina. Owing to the simple structure, small volume, short transmission chain, convenient operation, safe run, and the small quantity of maintenance, the press can set precision strike energy, show the strike power, reduce machine stress and heat-touch time of the mold and prolong its lifespan. Main technical

the parameter of j58k series cnc electric screw press machine:

machine type: j58k-630

nominal force: 6300 kn

max allowing load (central loading): 10000 kn

moving parts energy: 90 kj

ram stroke: 500 mm

no. Of stroke: 21min

min die height: 600 mm

front back ram bottom dimension: 920 mm

left right ram bottom dimension: 670 mm

front back table dimension: 920 mm

left-right table dimension: 800 mm
