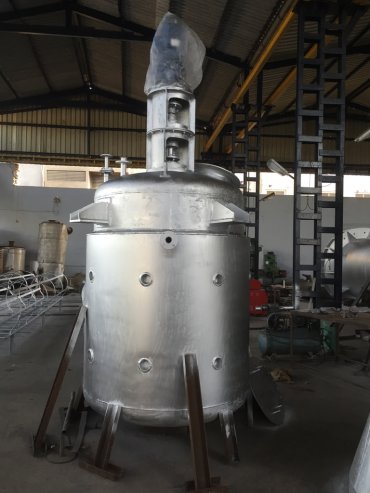

Jacketed Reaction Vessel

In Jacketed reactor, a jacket is welded on the shell to provide steam, thermic fluid circulation etc. This jacket can be made of Mild steel or Stainless steel as per the application of the user. The design of jacket can be of two type .i.e. Single stage or Double stage. A stiffener is welded on shell to withstand the pressure developed in the jacket and it also helps in proper distribution of steam and oil.
