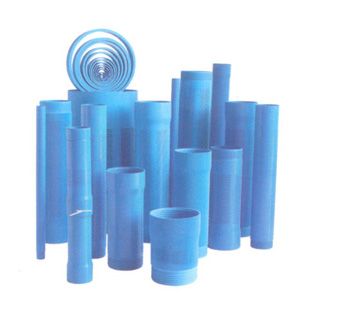

Jain PVC Pressure Pipes

Supply TypeSupplier, Retailer
Preferred Buyer Location India only

We have developed several offline as well as online options for the convenience of clients to ensure faster trade. In order to deliver a high-quality lot of products, we make use of the best....

View More Details

Send Enquiry

Product Details

We have developed several offline as well as online options for the convenience of clients to ensure faster trade. In order to deliver a high-quality lot of products, we make use of the best available resources and raw material. Also, we make sure that the material is sourced from the genuine vendors only.
Features and Specifications:

Manufactured from high-quality PVC compound.
Excellent corrosion and chemical resistance to most acidic and alkaline solutions.
Lightweight.
Easy to handle and transport.
Excellent flow characteristics.
Smooth inner wall minimizes frictional losses and scaling due to precipitation.
Available as per IS-4985, DIN-8062, and ISO-1452-2.
Also manufactured to BS-3505/3506, ASTM D1785-84 and ASTM D 2241 on demand.
Available in sizes from 20 mm to 560 mm (20) as per above standards.
Commonly supplied in 6 m lengths with plain ends or socketed at one end for solvent cement weld (Any other pipe length can be supplied on request).

Applications: Used for the conveyance of water in drip/sprinkler irrigation systems, lift irrigation systems, surface irrigation systems, subsoil drainage system, potable water supply systems, rising main and distribution lines.

Dimensions As Per ISO 4422-2

Nom. Outside Dia. mm	Minimum Wall Thickness in mm
	Pressure Rating in kg/cm²
	5	6	6.3	8	10	12.5	16	20	25
20	-	-	-	-	-	-	1.5	-	2.3
25	-	-	-	-	-	1.5	1.9	-	2.8
32	-	-	-	-	1.6	1.9	2.4	-	3.6
40	-	-	1.5	1.6	1.9	2.4	3	-	4.5
50	-	-	1.6	2	2.4	3	3.7	-	5.6
63	1.6	1.9	2	2.5	3	3.8	4.7	-	7.1
75	1.9	2.2	2.3	2.9	3.6	4.5	5.6	-	8.4
90	2.2	2.7	2.8	3.5	4.3	5.4	6.7	-	10.1
110	-	-	2.7	3.4	4.2	5.3	6.6	8.1	10
125	-	-	3.1	3.9	4.8	6	7.4	9.2	11.4
140	-	-	3.5	4.3	5.4	6.7	8.3	10.3	12.7
160	-	-	4	4.9	6.2	7.7	9.5	11.8	14.7
180	-	-	4.4	5.5	6.9	8.6	10.7	13.3	16.4
200	-	-	4.9	6.2	7.7	9.6	11.9	14.7	18.2
225	-	-	5.5	6.9	8.6	10.8	13.4	16.6	-
250	-	-	6.2	7.7	9.6	11.9	14.8	18.4	-
280	-	-	6.9	8.6	10.7	13.4	16.6	20.6	-
315	-	-	7.7	9.7	12.1	15	18.7	23.2	-
355	-	-	8.7	10.9	13.6	16.9	21.1	26.1	-
400	-	-	9.8	12.3	15.3	19.1	23.7	29.4	-
450	-	-	11	13.8	17.2	21.5	26.7	33.1	-
500	-	-	12.3	15.3	19.1	23.9	29.7	36.8	-
560	-	-	13.7	17.2	21.4	26.7	-	-	-

Dimensions As Per IS 4985

Nom. Outside Dia. mm	Minimum Wall Thickness in mm
	Pressure Rating in kg/cm²
	2.5	4	6	8	10	12.5
20	-	-	-	-	1.1	1.4
25	-	-	-	1.2	1.4	1.7
32	-	-	-	1.5	1.8	2.2
40	-	-	1.4	1.8	2.2	2.8
50	-	-	1.7	2.3	2.8	3.4
63	-	1.5	2.2	2.8	3.5	4.3
75	-	1.8	2.6	3.4	4.2	5.1
90	1.3	2.1	3.1	4	5	6.1
110	1.6	2.5	3.7	4.9	6.1	7.5
125	1.8	2.9	4.3	5.6	6.9	8.5
140	2	3.2	4.8	6.3	7.7	9.5
160	2.3	3.7	5.4	7.2	8.8	10.9
180	2.6	4.2	6.1	8	9.9	12.2
200	2.9	4.6	6.8	8.9	11	13.6
225	3.3	5.2	7.6	10	12.4	15.3
250	3.6	5.7	8.5	11.2	13.8	17
280	4.1	6.4	9.5	12.5	15.4	19
315	4.6	7.2	10.7	14	17.3	21.4
355	5.1	8.1	12	15.8	19.6	24.1
400	5.8	9.1	13.5	17.8	22	27.2
450	-6.5	10.3	15.2	20	24.8	30.5
500	7.2	11.4	16.9	22.3	27.5	33.9
560	8.1	12.8	18.9	24.9	30.8	38
