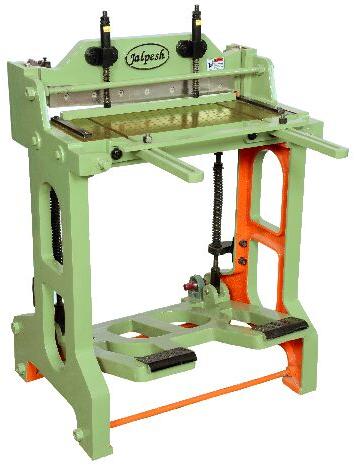

JALPESH Manual Treadle Guillotine Shearing Machine, Color : Everest Green

₹ 45,000 - ₹ 1.45 Lakh / piece

Automatic GradeManual
Brand NameJALPESH
ConditionNew
Number Of FlowerTreadle Guillotine Shearing Machine
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Member Since 7 Years
Nature of Business Retailer
Year of Establishment 2003

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerTreadle Guillotine Shearing Machine
Availability100-1000kg
ConditionNew
Automatic GradeManual
Brand NameJALPESH
Total Carbohydrate1 YEAR

The Everest Cast Iron Body Treadle Guillotine Shearing Machine with best workmanship, robust and streamline construction is developed and designed after maker's extensive experience in manufacturing and sales of such machines.

The machine is having wide application in industries like

Tin Containers
Barrels
Drum P. P. Caps
Calendar Rims

Electricals is having with application in industries like

Fabrication
Control Panels & Boards
Brass
Alluminium
Furnitures
M.S. & Steel Cutting
Block Makers, etc...

Silent features

Rigid and streamline construction ensures vibration-free and fatigue less function of the machine.
Upper Beam/Ram is moving in C. I. Guide ways with precision bearing surface and having adjustment for compensating wear and tear.
Adjustable front & back gauge with Through slots which facilitates adjustment of different widths of cuts and avoids any sorts of waves and twisting of sheets while cutting.
Adjustment bolts allow setting of blades to cut various thickness.
Machines are fitted with HCHCR quality Four Edge Shearing Blade to avail maximum use of blades
The extra heavy Treadle with proper weight is spring loaded and very well designed for operator's convenience which takes minimum pressure while cutting. The Springs fitted are of proper compression and strength.
All lubrication points are provided with lubrication cups at required places to ensure smooth, trouble free and long life of machine.
The Setting bolts are provided for lower-fixed blade to adjust vertically when height of blade is reduced after resharpening.

Specification

Specification	m.m. - inch	m.m. - inch	m.m. - inch	m.m. - inch	m.m. - inch	m.m. - inch	m.m. - inch	m.m. - inch	m.m. - inch
Size of Machine	305 12	458 18	610 24	915 36	1020 40	1270 50	1524 60	2058 81	2540 100
Length of Bed.	407 16	559 22	712 28	1020 40	1118 44	1372 54	1651 65	2159 85	2705 106.5
Width of Bed.	203 8	280 11	280 11	280 11	305 12	305 12	305 12	305 12	305 12
Cap Thickness M.S.	0.9 mm	0.9 mm	0.9 mm	0.9 mm	0.9 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Size of Blade in. M.M.	305x63x14	482x63x14	635x63x14	940x63x14	1041x63x14	1295x63x14	1550x63x14	2082x63x14	2565x63x14
Floor to Top of Bed.	863 34	863 34	863 34	863 34	889 34	889 34	889 34	889 34	889 34
Weight of machine	80 kg.	215 kg.	251 kg.	300 kg.	375 kg.	450 kg.	525 kg.	675 kg.	800 kg.
