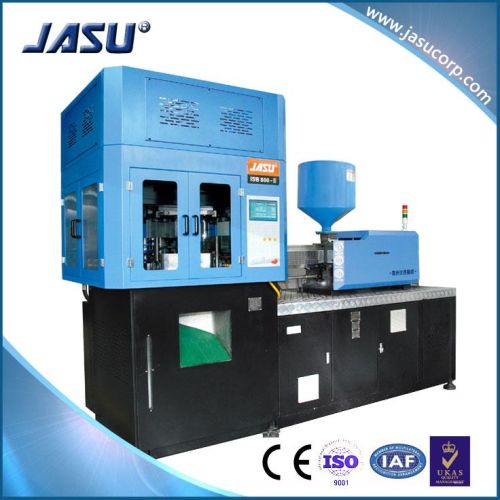

Jasu Isb800-3 Plastic Bottle Injection Blow Molding Machine

Max. Height of Bottle145mm
The Actual Injection Quantity225g
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are offering jasu isb800-3 plastic bottle injection blow molding machine. Sn item parameter isb 800-3 1 injection part screw diameter 40mm 2 screw ld ratio 20.5:1 3 screw....

Company Information

Member Since 10 Years
Nature of Business Manufacturer
Year of Establishment 2000

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

We are offering jasu isb800-3 plastic bottle injection blow molding machine.
Sn item parameter
isb 800-3
1 injection part screw diameter 40mm
2 screw ld ratio 20.5:1
3 screw speed 0-190rmin
4 theoretical injection capacity 238cm³
5 injection pressure 174mpa
6 max. Hydraulic pressure 140kgcm
7 the actual injection quantity 225g
8 8oz
9 screw stroke 190mm
10 clamping part blow clamping force 80kn
11 clamp tonnage 400kn
12 wheel diameter 800mm
13 max. Height of bottle 145mm
14 open vertical mode trip 430mm
15 other max. Pump pressure 16mpa
16 motor 18.5kw
17 electric power 8.9kw
18 tank volume 400l
19 dimension 3.8x1.45x3.0m
20 weight 5ton
