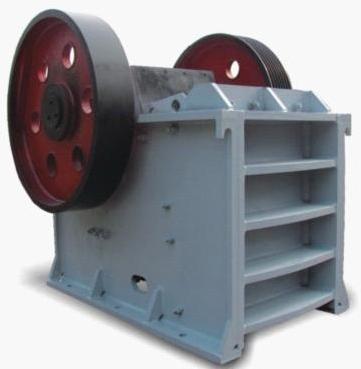

Jaw crusher, Inlet Size : 150*250mm, Weight : 0.8t

We are offering jaw crusher.
1 the best crusher for breaking stone.
2 stone crusher form 1-105t/h.
3 stable performance.
4 iso9001:2000,ce
1. Brief introduction of jaw crusher
jaw crusher is widely used as primary and secondary crushing equipment to crush material with compression strength less than 320 mpa. It is widely used in mine, metallurgic industry, chemical industry, building material, highway, railway, water conservancy, etc.
2. Working principle of jaw crusher
motor drives v-belt and belt pulley to make moving jaw do periodic motion by eccentric shaft. moving jaw moves upwards to the fixed jaw when angle between toggle plate and moving jaw increases, so materials are crushed in this process. moving jaw moves downwards from fixed jaw by pulling rod and spring when angle between toggle plate and moving jaw decreases, so the final crushed materials are discharged from the outlet. the moving jaw moves periodically according to the eccentric shaft movement, and the materials entering the crushing chamber are crushed and discharged continually.
3. Features of jaw crusher
1. large crushing ratio and even discharged materials.
2. large and reliable adjusting range of discharged outlet meets various requirements.
3. safe and reliable lubrication system, easily changed spare parts and easy maintenance.
4. simple structure and low operation cost.
5. low noise and little dust pollution.
4. Technical parameters of jaw cruhser
model
inlet size (mm)
maxfeedingsize (mm)
adjusting scale of discharged opening(mm)
capacity (t/h)
motor (kw)
weight (t)
overall dimension (l x w x h)
(mm)
pe-150
150×250
125
15-45
1.2-3.5
5.5
0.8
950x1100x1100
pe-250
250×400
210
20-60
5-22
15
2.8
1450x1350x1500
pe-400
400×600
350
40-80
18-60
30
7
1700x1800x1650
pe-500
500×750
425
50-100
43-102
55
10.6
2270x2370x2145
pe-600
600×900
500
65-160
51-180
75
16.5
3000x2500x2600
pe-750
750×1060
630
80-180
80-195
110
29
2526x2410x2780
pe-900
900×1200
780
95-180
140-270
132
52
2960x2760x3530
pe-1000
1000×1200
850
195-280
190-310
132
55
3889x2826x3025
pe-1200
1200×1500
1020
150-300
260-510
180
100.9
4930x3548x3702
pex-150
150×750
120
18-40
8.5-28
15
3.8
1300x1750x1200
pex-250
250×750
210
25-60
15-35
30
5.5
1400x1750x1400
pex-250
250×1000
210
25-60
20-65
30
7
1400x1980x1440
pex-250
250×1200
210
25-60
25-75
45
8.5
1400x2180x1440
pex-300
300×1300
250
20-90
30-105
75
11
1560x2350x1600
we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:
stone production line:
including:
jaw crusher
impact crusher
cone crusher
hammer crusher
vibrating screen etc
sand making production line:
including:
jaw crusher
sand making machine (vsi crusher)
ball mill
cone crusher
hammer crusher
sand washing machine
vibrating screen etc
we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
