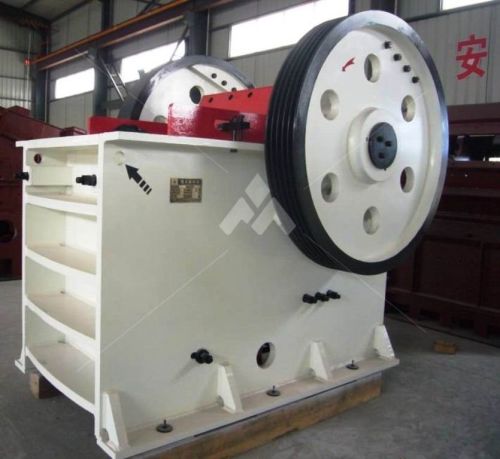

Jaw Crusher Pe-250*400

We are offering jaw crusher pe-250*400.
1. Working principle:
this crusher adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus the material will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. The material is discharged from the lower part of machine that is what you want.
2. Application:
1.mining, metallurgy, construction material, highway, railway, water conservancy and chemical industries
2. It is preferred equipment for the complete set of product line as the first step crusher.
3. Advantages and characteristics:
low running cost
short toggle,large angle,
uniform output particle size
long service life,
easy maintenance
4. Main technical parameters:
size of feed opening: 250*400 mm
max.feed size: 210 mm
capacity: 5-20 t/h
motor power: 15 kw
weight: 2.8 t
dimension: 1450*1315*1296 mm.
