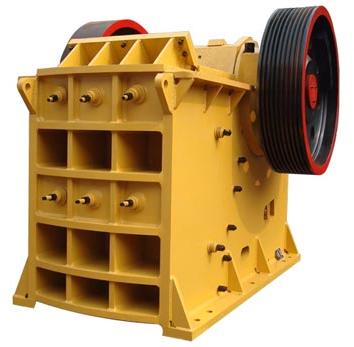

Jaw crusher, Application : Jaw Crusher

We are offering jaw crusher.
Jaw crusher
jaw crusher is suitable for all ore, rock materials and so on whose crushing density intensity ≤320mpa. It is widely applied in railway, highway, mining, smelting, construction, water industries and so on.
working principle:
the crushing way adopts moving and squeeze principle. The movable jaw moves up and down by the effect of eccentric shaft. When the movable jaw elevates, the angle between elbow and movable jaw becomes larger, and this impulses the movable jaw close to the stable jaw, while the material can be pressed and chopped into pieces; when the movable jaw falls, the angle between elbow and movable jaw becomes smaller, movable jaw gradually leaves far from the stable jaw under the effect of pull rod and spring. Then, the broken material can be discharged from the down-mouth of crushing chamber.
characteristics:
1. Adopt imported high-strength manganese steel and world-leading one-shot forming foundry engineering technology; strong wearability, pressure resistance, long lifespan; especially suitable to crush materials with hard intensity;
2. Adopt most advanced movable jaw bearing; low energy consumption; the lifespan will be about 60% longer than ordinary bearing;
3. Easy structure and easy to use and maintain; stable capability, low operation costs and large crushing proportion.
