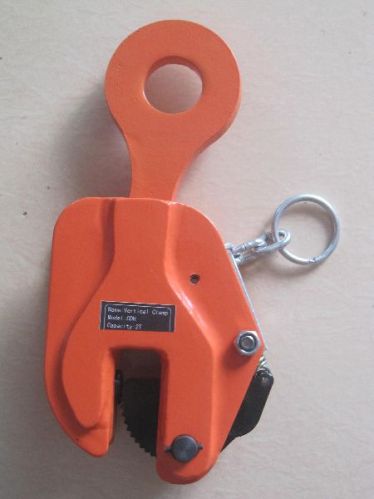

JCD Series Vertical Lifting Clamps

Main Features: 1.Working load limit9(WLL):1--5T 2.Designed for vertical lifting of steel plates and steel strucures 3.The spring-loades tightening lock mechanism assures a positive initial clamping force 4.Clamps are equipped with a safety mechanism,ensuring the clamp does not slip when lifting force is applied and when load is being lowered 5.The main body and the shackle are made of die-forged special alloy steel,which are optimally tempered fo maximum strength and durability 6.High-frequency quenching of die-forged special alloy steels gives greater durability to the cam Specifications : Model WLL(ton) Testing Load Jaw Opening Weight(kg) JCD-1 1 2000 0-22 3.6 JCD-2 2 4000 0-30 6.0 JCD-3 3 6000 0-35 9.2 JCD-5 5 10000 5-45 16.5
