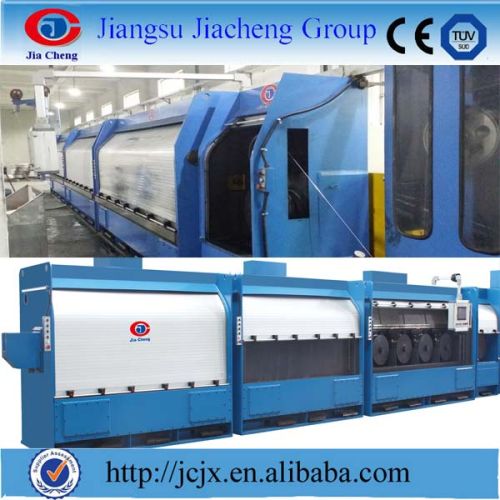

Contact SupplierJcjx-lhd 4502 two wire rod breakdown machine
main feature:
machine type lhd45013-2 lhd45011-2 lhd4509-2
drawing wire no. 2 wires
drawing drum dia. (mm) φ450 φ450 φ450
max. Die no. 13 11 9
inlet dia. (mm) φ8
outlet dia. (mm) 2* φ1.2~φ3.2 2* φ1.2~φ3.2 2* φ2.0~φ3.2
1*φ3.5~φ4.5 1*φ3.5~φ4.5 1*φ3.5~φ4.5
max.drawing speed (ms) 25 25 20
main motor (kw) 500
capstan motor (kw) 120 120 120
drum arrangement horizontal type
take-up type (optional) (double take-up) (single take-up) (coiler)
optional equipment horizontal continuous annealer online
( on-line continuous annealing device)
type 450t-2
annealing wire no. 2 wires
annealing wire dia. ( mm ) copper rod breakdown machine with annealing
annealing voltage ( v ) 0 ~ 55 v
annealing current ( a ) 0 ~ 8000 a
max. Annealing speed ( m s) 25 m s
