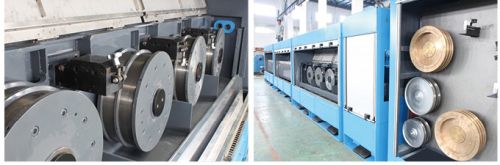

JCJX-LSD450/2 Copper Or Aluminum Two Line ROD Breakdown Machine

Main feature:
1, full immersion, can guarantee the wire�s cooling and lubrication
2, every drum is transmitted by single motor , the tension rate can be adjustable, it can also realize fast die change.
machine type lsd45013-2 lsd45011-2 lsd4509-2
drawing wire no. 2 wires
drawing drum dia. (mm) ï�450 ï�450 ï�450
max. Die no. 13 * 2 11 * 2 9 * 2
inlet dia. (mm) copper 2 * ï�8
al, al alloy 2 * ï�9.5
outlet dia. (mm) copper 2* ï�1.2~ï�3.5 2* ï�1.2~ï�3.5 2* ï�2.0~ï�3.5
1*ï�3.5~ï�4.5 1*ï�3.5~ï�4.5 1*ï�3.5~ï�4.5
al, al alloy 2*ï�1.7~ï�5.0 2*ï�2.2~ï�5.0 2*ï�2.8~ï�5.0
max. Drawing speed (ms) 28 25 20
main motor (kw) 45 55 75 132 kw (ac)
drum arrangement horizontal type
take-up type �optional� �double take-up) �single take-up) �coiler�
optional equipment horizontal continuous annealer online
1. Full immersion, can gurantee the wire's cooling and lubrication.
2.every drum is transmitted by single motor, the tensile rate can be adjustable, it can also realize fast die change.
( on-line continuous annealing device)
type 450t-2
annealing wire no. 2 wires
annealing wire dia. ( mm ) 2* ï�1.2~ï�3.2mm , 1*ï�3.5~ï�4.5mm
annealing voltage ( v ) 0 ~ 55 v
annealing current ( a ) 0 ~ 8000 a
max. Annealing speed ( m s) 25 m s
