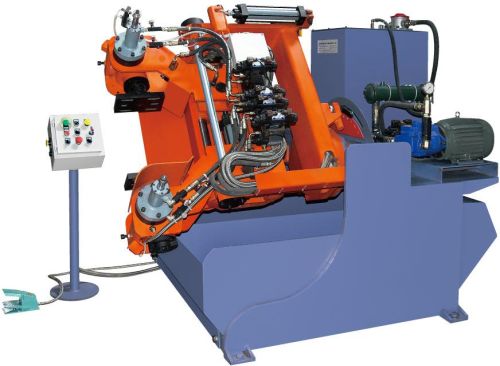

JD-AB500 Gravity Die Casting Machine

MOQ1 Set(s)
Supply TypeManufacturer
Preferred Buyer Location All over the world

"JD-AB500 Automatic Core Shooting Machinery Main Specifications and Technical Parameters Maximum Outlined Diameter of Mold:500mm Maximum Weight of Mold:150kg Maximum distance of mold base....

View More Details

Send Enquiry

Company Information

Quanzhou Jinglong Machinery Co. Ltd

China

View Number

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 2008

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

"JD-AB500 Automatic Core Shooting Machinery
Main Specifications and Technical Parameters
Maximum Outlined Diameter of Mold:500mm
Maximum Weight of Mold:150kg
Maximum distance of mold base plate:510mm
Maximum clamping stroke:270mm
Angle range of measured-cast:0Ã�Â°-90Ã�Â°
Angle range of mold immersion:0Ã�Â°-110Ã�Â°
Angle range of mold immersion:0Ã�Â°-90Ã�Â°
oil Pressure:50-70bar
Power capacity:3.75+0.75+0.75w
Three phase power:380V/50HZ(per customers requirement)
Oil tank capacity:220L
Volume of mold immersion tank:375L+375L
Net weight of the Equipment:2000kg
Maximum dimension of the equipment:1650*2300*1720mm
