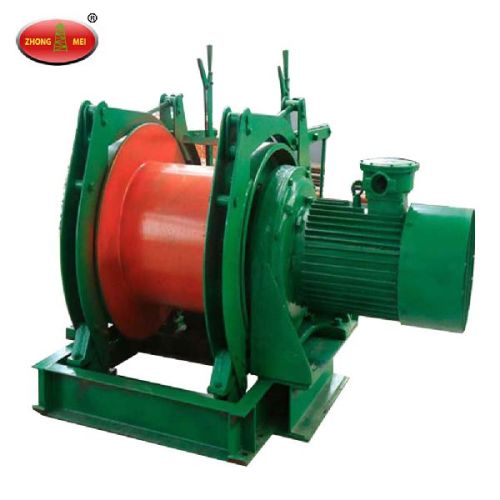

Contact SupplierIntroduction of JD series Explosion-Proof Mine Dispatching Winch We are manufacture of mining winch, Scraper Winch, Hoist Winch, Electric Winch, Shaft Sinking Winch, Dispatch Winch, high speed winch and other mining equipment of mine locomotive, mine cart etc. Mining equipment of mining winch JD series Explosion-Proof Mine Dispatching Winch is used for dispatching trolleys, tramcar in underground parking lots, middle roadways, mining transportation lanes in mines, dragging or carrying heavy loads. We can design and manufacture different types of dispatching winch with maximum pulling force 7.5-40KN. In addition we can also manufacture Scraper Winch,Hoist Winch,Electric Winch, Dispatching Winch and other winch. Parameter of JD series Explosion-Proof Mine Dispatching Winch Model JD-0.5 JD-0.75 JD-1 JD-1.6 JD-4 Traction Force KN 7.5 7.5 10 17.6 30 Average Speed ms 0.71 0.71 0.78 1.4 1.44 Dia of Wire Rope mm 9.3 9.3 12.5 15 20 Drum Size mm 200×300 200×300 224×304 310×400 620×580 Rope Capacity m 250 250 400 440 480 Total Reduction Ratio 34.81 34.81 41 32.5 31.8 Motor Type YB132S-4-B5 YBJ-11.4 YBJ45-4 YBJ40-4 YB2-132S-4 Motor Power KW 5.5 11.4 25 40 5.5 Motor Rev Revmin 1440 1460 1470 1470 1440 Motor Voltage V 380660 380660V 380660V 380660V 380660V Di mention mm L×W×H 1085×730 ×697 1085×730 ×697 1073×766 ×727 1448×12.
