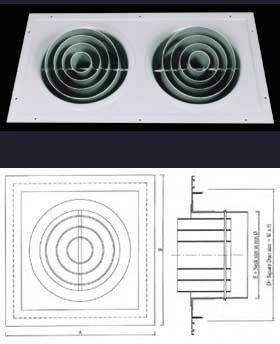

Jet Diffuser

• Frame and inner rings are high quality aluminium construction with the advantages of corrosion resistance.
• Jet nozzle section is mounted in aluminium square plate covered by flanged border.
• Nozzle can be adjusted 30° upwards and downwards to achieve required throw as per site condition. Nozzle jet can be rotated by 360° by adjusting the mounting frame.
• Generally designed for wall mounting. For ceiling mounting, drill 2 to 4 holes in the face of the flanged border.
• Air master jet diffusers are specially suitable to handle large quantity of air with long throw.
• Ideal for commercial use such as concert halls, theatres, exhibition and sport halls.
• Jet nozzles can be supplied with plenum box, which is manufactured from galvanized steel sheet as option.
• Plenum boxes can be supplied with round duct damper at the spigot as option.

• Powder coated color finish as per RAL color codes.
• Flexibility of finishing available as option.

Available from 100 mm dia to 400 mm dia with the increments of 50 mm.

D = Dia of jet diffuser in mm: 100, 150, 200, 250, 300, 350, 400
