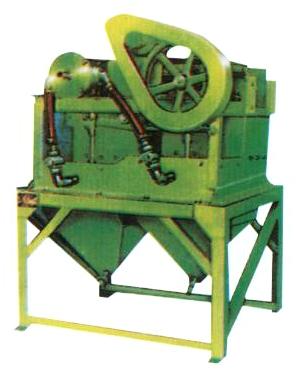

Jigger

We are offering Jigger.
Jigger is generally made up of rubber diaphragm, rocker, water distributor, transmission device, connecting rod, storage hopper, jigging cell, rack, discharging stopcock.
The beneficiation process of jigger is divided into two stages:
sorting and separation. The stage of sorting is to layer the ore particles according to their density, which is affected by the properties of ores and operational rules, and is also the premise to the next stage of separation. The separation stage is a course of discharging, which is decided by the distribution of layers, the precision of test method for stack thickness, reasonableness of discharging pattern, control system, etc.Jigger is applicable to separate metallic ores in roughing and cleaning operation. Appropriate separation granularity for the machine is 0.1mm to 12mm.
Jigger features:
1.Flexible adjustment and wide application
2.To save energy and reduce production costs
3.Simple operation, easy maintenance
Zhengzhou Jintai Mining Machinery Limited is specialized in manufacturing mineral processing machinery and providing mineral processing technology for concentration plants. Our company is known for producing Ball Mill, Grate Ball Mill, Crusher, Classifier, dryer, mixer,Magnetic Separator, CTB series of Magnetic Separator, Flotation Machine, SF Flotation Machine, XJ Flotation Machine, Centrifugal Separator,Jigger and so on. We are a professional Jigger supplier and we provide Jigger price, Jigger working principle for you.
Jigger specifications:
Type Model cross sectionof the jig chamber L×W
(mm) Area of the single jig chamber
m2 Column quantity of the jig chamber quantity of the jig chamber Total area of the jig chambers (m2) Strokefactor Dissepiment stroke Dissepiment times(Time/min) Max particle size
mm Capacity
t/h Water consump-tion(t/h) Motor power(kw) W(kg)
Lateral driven LTP-34/2 Square 450×300 0.135 Single
2 0.27 0.58 0~25 320,420 12 2~6 4~10 1.1 750
Bottom driven LTA-55/2 500×500 0.25 Single
2 0.5 0.5 0~26 250;300;350 5 1~5 4~20 1047
LTA-1010/2 1000×1000 1 Single
2 2 0~25 250;300;350 5~15 20~60 22 1516
Reviberating Single
2 0~5 400-750 2~10 4~5 40~45 1.7 1620
Lateral driven LTC-69/2 900×600 0.54 Single
2 1.08 0.56 0~50 220-350 12 6~9 40~60 15 1420
2LTC-79/4 900×700 0.63 Double 4 2.52 0.48 160-250 5~15 20~90 22 2450
2LTC-912/4 1200×900 1.08 4.32 0.49 160-250 7~25 60~120 3 3500
2LTC-366/8T Trapezium 600×(300~600) 0.2~0.34 8 2.16 0.68~0.40 120-300 5 3~6 20~40 1.1×2 1600
2LTC-6109/8T 900×(600~1000) 0.58~0.86 5.76 0.52~0.35 10~20 80~120 2.2×2 4650
