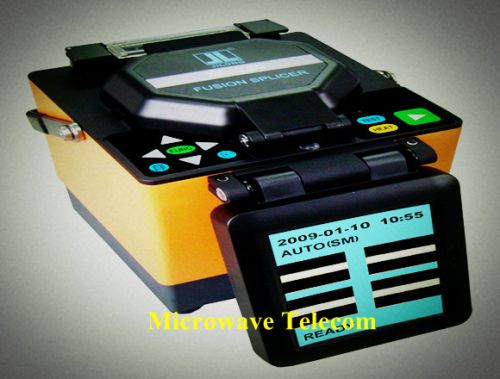

Jilong Fusion Splicer

We are offering jilong fusion splicer.
features:-
fiber core can be display clearlysingle x or y view and x & y view simultaneouslyauto check quality of  cleaved end faceauto select best splicing program9 seconds splice time and 30 seconds heat timesmall bulk and light weigh5 inch color lcd monitor with clear digital image displaysimple operation menu
specifications
model kl-280
applicable fibers sm(itu-t g.652),mm(itu-t g.651),ds(itu-t g.653),nzds(itu-t g.655)
fiber cleaved length 8~16mm(coating diameter: 250µm)
16mm(coating diameter: 250 ~ 1000µm)
fiber diameter cladding diameter: 80 ~150µm coating diameter: 100~ 1000μm
fiber count single
fiber aligning method core  aligning
return loss >60db
actual average splice loss 0.02db(sm),0.01db(mm),0.04db(ds),0.04db(nzds)
splicing mode auto
splicing mode 12(templet),188(user)
typical splicing time typical 9 sec, with standard sm fiber
protection sleeve length 60mm, 40mm and a series of micro sleeves
storage of splice result 5000 results, 3 parameter per result
tension test 2n
fiber display and magnification 400x(x or y view), 200x(x and y view)
tube heating time typical 30 sec
electrode life 2500
no.of splice/heating with battery typical 130 cycles (splice/tube heat) with inner li-battery
display screen 5 inch color lcd monitor
image change over the fiber image is turned upside down
terminals rs 232
operating condition 0 ~ 5000m above sea level,0 ~ 95%rh and -10～50c,respectively,max. Wind velocity of 15m/s
power supply ac 100-240v with ac adapter;inner li-battery(6600mah)
dimensions 150mm(l) x150mm (w) x160mm (h)
weight 3.52 kg including battery.
