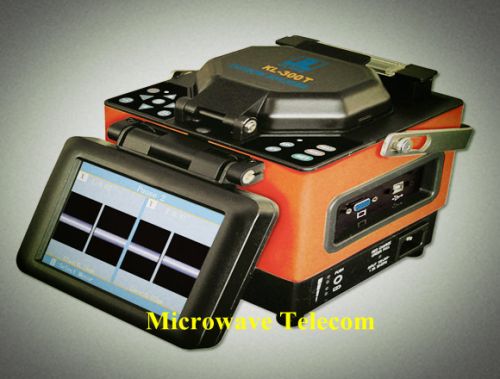

Jilong Fusion Splicer

We are offering jilong fusion splicer.
Features:-
core to core alignment by pas technology ( pas:profile alignment system)digital fusion splicer with automatic focus function
fiber core can be display clearlysingleâ x or y view and x & y view simultaneouslyauto detect cleaved endface faultdisplay fiber cleaved and offset angledisplay core and clad offset5.
6 inch tft color lcd monitor with clear digital image displayâ usb & vga interfacesoftware upgrade via usb interface
specifications
model kl-300t
applicable fibers sm(itu-t g.652),mm(itu-t g.651),ds(itu-t g.653),nzds(itu-t g.655)
fiber cleaved length 8~16mm(coating diameter: 250âµm)â â â
16mm(coating diameter: 250 ~ 1000âµm)
fiber diameter cladding diameter:80 ~150âµmâ  coating diameter:100~ 1000î¼m
fiber count single
fiber aligning method core or clad aligning
image processing method digital
actual average splice loss 0.02db(sm),â 0.01db(mm), 0.04db(ds),â 0.04db(nzds)
splicing time typical 9 sec, with standard sm fiber
splicing mode 53(templet), 40(user)
splice loss estimate more accurate
return loss >60db
storage of splice result 4000 results, 20 parameter per result
fiber display and magnification 300x(x or y view),150x(x and y view)
tube heating time typical 30 sec
tube heating mode 9(templet), 24(user)
tube heating temperature can be adjusted
applicable protection sleeve length 60mm, 40mm and a series of micro sleeves
tension test 2n
electrode life 2500
no.of splice/heating with battery typical 150 cycles (splice/tube heat) with inner li-battery
display screen 5.6 tft inch color lcd monitor
image change over the fiber image is turned upside down
terminals usb 1.1 and vga
operating condition 0 ~ 5000m above sea level,â 0 ~ 95%rh and -10ï½�50â��,â respectively,â max. Wind velocity of 15m/s
power supply ac 100-240v with ac adapter;â inner li-battery(6600mah)
dimensions 150mm(l) x150mm (w) x150mm (h)
weight 2.7 kg excluding battery,3.2 kg including battery.
