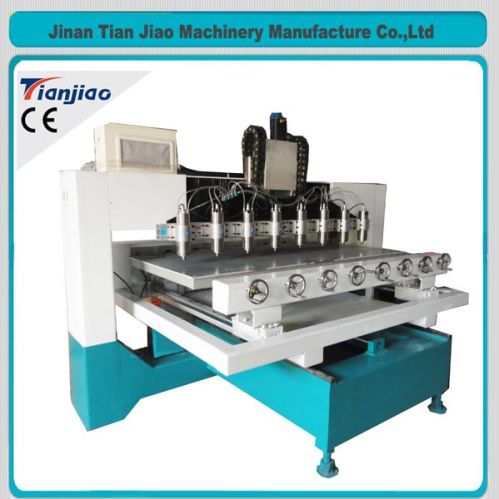

Jinan CNC Router 4 Axis, Certification : CE

₹ 8.95 Lakh / 15000 15000 Set

MOQ1 Set(s)
CertificationCE
Country of Origin380V,50HZ
Availability2500kgs
Accuracy0.01mm
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Jinan Tian Jiao Machinery Manufacture Co,. ltd

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 2008

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

CertificationCE
Country of Origin380V,50HZ
Availability2500kgs
control systemNC-studio
Accuracy0.01mm
Dimension425*230*106cm
spindle8 water cooling 1.5kw
working speed17000mm/min
workpiece size80mmdiameter*250mm length
tableflat engraving table with rotary

We are offering jinan cnc router 4 axis
1.applications
suitable for three-dimensional piece of european sculpture, antique wood furniture, stair columns, statues, human statues, crafts, plastic models.
For machining cylindrical object, such as a cylindrical craft, cylindrical furniture accessories, stair railing, cylindrical musical instruments, etc.
2.technical parameters
model tj2025-8
gantry steel gantry
working range 2000*2500*200mm
transmit way high accuracy helical racks
drive way stepper motor(optional:servo motor)
working speed 17000mmmin
machine accuracy 0.01mm
power resource ac380v50hz(ac220v50hz)
spindle power 1.5kw water cooling spindle
spindle speed 6000-24000rpm
control system nc-studio
command g code*.u00*.mmg* plt
engraving diameter 200mm
software ucancam,type3
3.service:
1. 24-hour online service for you
2.longlife time freely provide technical support
3.welcome to our factory,our technical staff teach you for free.
4.can costom for you, welcome to contact m
