jintai30We are a professional Jigger supplier and we provide Jigger price, Jigger working principle for
you. If you have any need, please contact us, we will provide you our best service .

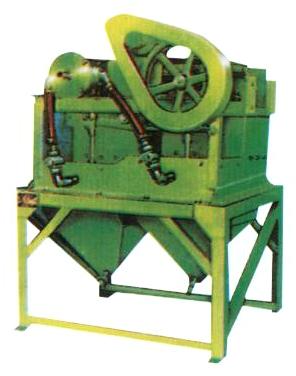

jintai30Jigger is generally made up of rubber diaphragm, rocker, water distributor, transmission device,
connecting rod, storage hopper, jigging cell, rack, discharging stopcock.
The beneficiation process of jigger is divided into two stages:
sorting and separation. The stage of sorting is to layer the ore particles according to their density, which is
affected by the properties of ores and operational rules, and is also the premise to the next stage of
separation. The separation stage is a course of discharging, which is decided by the distribution of layers,
the precision of test method for stack thickness, reasonableness of discharging pattern, control system,
etc.Jigger is applicable to separate metallic ores in roughing and cleaning operation. Appropriate
separation granularity for the machine is 0.1mm to 12mm.
Jigger features:
1.Flexible adjustment and wide application
2.To save energy and reduce production costs
3.Simple operation, easy maintenance
Zhengzhou Jintai Mining Machinery Limited is specialized in manufacturing mineral processing machinery
and providing mineral processing technology for concentration plants. Our company is known for
producing Ball Mill, Grate Ball Mill, Crusher, Classifier, dryer, mixer,Magnetic Separator, CTB series of
Magnetic Separator, Flotation Machine, SF Flotation Machine, XJ Flotation Machine, Centrifugal
Separator,Jigger and so on. We are a professional Jigger supplier and we provide Jigger price, Jigger
working principle for you. If you have any need, please contact us, we will provide you our best service .
0086-0371-68713618 0086-0371-68723618
13383828296
jintai20086@gmail.com
Jigger specifications:
Type Model cross sectionof the jig chamber L×W
(mm) Area of the single jig chamber
m2 Column quantity of the jig chamber quantity of the jig chamber Total area of the jig
chambers (m2) Strokefactor Dissepiment stroke Dissepiment times(Timemin) Max particle
size
mm Capacity
th Water consump-tion(th) Motor power(kw) W(kg)
Lateral driven LTP-342 Square 450×300 0.135 Single
2 0.27 0.58 0~25 320,420 12 2~6 4~10 1.1 750
Bottom driven LTA-552 500×500 0.25 Single
2 0.5 0.5 0~26 250;300;350 5 1~5 4~20
1047
LTA-10102 1000×1000 1 Single
2 2 0~25 250;300;350 5~15 20~60 22
1516
Reviberating Single
2 0~5 400-750 2~10 4~5 40~45 1.7 1620
Lateral driven LTC-692 900×600 0.54 Single
2 1.08 0.56 0~50 220-350 12 6~9 40~60 15 1420
2LTC-794 900×700 0.63 Double 4 2.52 0.48
160-250 5~15 20~90 22 2450
2LTC-9124 1200×900 1.08 4.32 0.49
160-250 7~25 60~120 3 3500
2LTC-3668T Trapezium 600×(300~600) 0.2~0.34 8 2.16
0.68~0.40 120-300 5 3~6 20~40 1.1×2 1600
2LTC-61098T 900×(600~1000) 0.58~0.86 5.76
0.52~0.35 10~20 80~120 2.2×2 4650
