Jintai30Vacuum Filter

jintai30Vacuum Filter
jintai30We are a professional Vacuum Filter supplier and we provide Vacuum Filter price, Vacuum Filter
working principle for you. If you have any need, please contact us, we will provide you our best service .

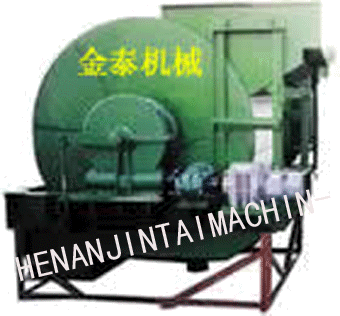

jintai30Barrel vacuum filter is widely used in chemical industry, petroleum industry, pharmaceutical
industry, light industry, food industry, coal industry and water treatment industry. The machine is able to
filter solid and liquid with its porous filter medium.
Vacuum Filter Categories:
gravity filter, vacuum filter, pressure filter, centrifugal filter, barrel vacuum filter and belt vacuum filter.
Zhengzhou Jintai Mining Machinery Limited is specialized in manufacturing mineral processing machinery
and providing mineral processing technology for concentration plants. Our company is known for
producing Ball Mill, Grate Ball Mill, Crusher, Classifier, dryer, mixer,Magnetic Separator, CTB series of
Magnetic Separator, Flotation Machine, SF Flotation Machine, XJ Flotation Machine, Centrifugal
Separator,Vacuum Filter and so on. We are a professional Vacuum Filter supplier and we provide Vacuum
Filter price, Vacuum Filter working principle for you. If you have any need, please contact us, we will
provide you our best service .
0086-0371-68713618 0086-0371-68723618
13383828296
jintai20086@gmail.com
Vacuum Filter Main Technical Parameters:
Type GW-3 GW-5 GW-8 GW-12 GW-20 GW-30 GW-40 GW-50
Main Technical Features Internal FilteringArea (m2) 3 5 8 12 20
30 40 50
Cylinder Size(mm) Diameter 1600 2000 2500 3350
Length 700 900 1400 2000 2650 3000 4000 5000
Speed (rmin) Group I 0.5-2 0.1-2 0.1-2 0.1-2 0.140.190.270.380.54
0.12,0.16,0.23,0.29,.039,0.56
Group II
0.11,0.14,0.21,0.26,0.34,0.50
Mixing Frequency 23 25.45
Capacity(th) 1.2 2 3.2 4.8 3-8 4.5-12 6-16 7.5-
20
Dimension(mm) 1727x1938x1290 2657x2400x2050 3243x2945x2370
3843x2892x2370 4480x4085x2890 5200x4910 x3743 6200x4910 x3743 7200x4960x3743
Weight(t) 2.36 3.76 4.877 5.6 10.6 17.2 19.5 21
SpeedReducer A1X-II-4.5 XWD0.8-4 BKPZL35 K231PZL35
K231PZL35 K231PZL42.5
Motor For Cylinder
(kw)
Y90L-4 1.5 YD132M-643.04.5 YD160M-8643.345
For Mixer
(kw) 0.8 0.8 Y802-40.75 Y112M-62.2 Y123S-63 Y132M1-64
GeneraDrawing No. F03P F05P F08P F162P F63P F64P F65P F66P
Vacuum Filter Main Technical Parameters:
Type GYW-3 GYW-5 GYW-8 GYW-12
Specification
　(m2 ) 3 5 8 12
Internal Filtering Area (m2 ) 3 5 8 12
Main Technical Parameters
Cylinder Diameter
(mm) 1600 2000 2000 2000
Length (mm) 700 900 1400 2000
Speed (rmin) 0.5-2.0 0.5-2.0 0.5-2.0 0.5-2.0
Required Vacuum Degree(KPa) 60-80
Pumping Capacity (m3min·m2) 0.5-20.
Required Blast Pressure (KPa) 10-30
Blast Volume (m3min·m2) 0.1-0.5
Magnetic Induction (mt) 82 87
FeedingDensity (%) >=60
Capacity 6-9th 14-18th 22-43th 33-65th
Moisture Content of Filter Cake
(%) 8-11 8-10
Dimension (mm ) 1895x2506x2087 2110x2755x2500 2610x2905x2500
3210x2905x2500
Weight (t) 3.27 3.94 4.76 5.42
Motor Type Y100L-6 Y100L-6 Y100L-6 Y112L-6
Power(KW) 1.5 1.5 1.5 2.2
Speed (rmin) 940 940 940 940
General Drawing NO. F81P F82P F83AP F84AP
