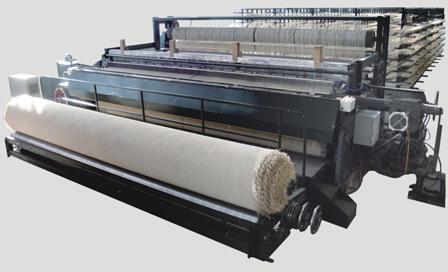

JMJ510 Carpet Rapier Loom

We are offering carpet rapier loom.application:it is used for weaving widely carpet in different natural fibers.
Technical parameters:
　　1、range of natural fiber:hemp、chemical fiber、cotton etc yarn in dia. Ф1.0～ф3.0mm.
　　2、weft density: 25～60 picks10cm.
　　3、reed width: 5m-8m
　　4、max.speed: 40-60rpm.
　　5、total power of machine: 19.2-25kw.
　　6、weight: 38-50t
　　7、overall dimension(mm):depth×height: 7500×2600
　　8、width:reed width +3 m
main construction:
　　1、framework:it includes of many groups of main and vice wallboard,the space between wallboards is
　　　　2.7m.
　　2、main drive:double sided motors pneumatic clutch driven system.
　　3、weft insertion mechanism:adopting servo motor drive rapier weft insert system with help of accumulator
　　　　device.
　　4、shedding mechanism:4-6 pieces of slot cam driven shedding system,steel heald frames.
　　5、weft beating up mechanism:crank four-linkage weft beating system.
　　6、take up mechanism:adopting three rollers take up system, top roller is porcupine.
　　7、let off mechanism:adopting creel model continue let off system.thelet off framework is positive in
　　　　supplying,power of motor is 2.2-4 kw.
　　8、lubrication system:hand operated pump central oil supplying system.
　　9、control system:adopting plc computerize control system.
