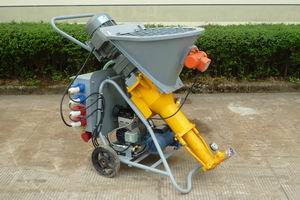

Jp22 Mortar Plastering Machine

1)JP22 is small machine introduced German technology.
2)It has water measuring function and automatic mixing of dry ready-mixed mortar function.
3)With small volume, it's easy move and adapt for use in narrow spaces.
4)With combined functions of pumping, bonding and plastering, it's suitable for different characteristics dry ready-mixed mortar for different working purposes including interior and exterior mortar, insulation mortar, self-leveling floor mortar, adhesive mortar, repair mortar etc.
5)Set pressure control protection system.
6)With modular and compact structure, it's easy to dissemble.
Technical Parameter
Displacement 16L/min
Motor power 4kw
Conveying pressure 30bar
Hopper capacity 50L
Conveying pressure 0-15m
Conveying height 0-10m
Weight 165kg
Overall dimension 1269×660×1072mm
