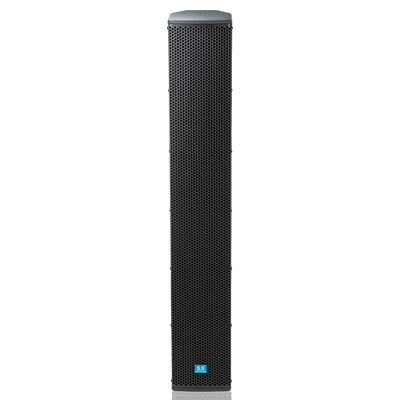

JS-07 FullRange Column LoudSpeaker Systems, Brand Name : 5S brand

Description:
js-07 of 5.s brand is a two-way multifunction full range loudspeaker system, the design of js-07 is symmetrical trapezoidal front-oriented ,equipped with oval abs material horn with a range of 90â°*60â°. It is embedded in three 5" ultra-low distortion unit and 1" horn compression driver unit. As a two-way system, js-07 can be driven directly and also can match two channel power amplifier systems to achieve the ultimate high output.js-07 of 5.s brand can provide to hotels, halls, airports, conferences profession sound solutions.
Applications�
religion place,auditorium
meeting room,multi-function place
entertaiment places,canteen,bar
trafic place,stadium
library,museum
shopping center,school
specifications:
type: two-way fullrange multi using sound column speaker
frequency response: 62hz-20khz
rated power: 200w(aes)
peak power: 800w
sensitivity: 95db
max. System output 126db�peak�
nominal directivity: 90â° x 60â°
crossover frequency� 1.8khz(built in crossover)
impedanceï¼� 4î©
connectors� 2*neutriktm 1+,1-
rigging� 8*m8
product unit
lf: 5 " cone which is imported from italy;1.2" (30mm) voice coil. Rated power: 30w (aes)
hf� 1" horn which is using italy imported membrane group drive unit;1.34" (34mm) voice coil. Rated power: 30w (aes)
enclosure
colour� polyurea paint water-based paint points (all ral colors)
material� 12mm russian birch plywood
dimensions(w*h*d)� 170mm*634mm*224mm
weight: 10.35kg
