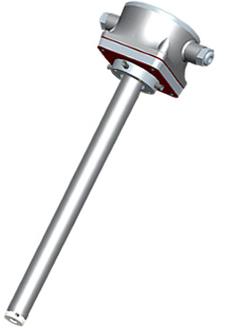

JT606 Fuel Level Sensor

Combined with the top sensor technology in the world, JT606 capacitive fuel level sensor was independently developed by JOINTECH , a number of innovative patented technologies enable JT606 to continuously detect the liquid level with the high resolution(<1mm), as well as adjust the length to fit different fuel tanks on the spot, and replace the original vehicle fuel level sensor to connect the original fuel meter.JT606 has been widely applied to the remote fuel consumption monitoring and management of logistics fleet, genset, buses, coaches, construction machineries, etc.

Key Features

• Resolution: <1mm , Accuracy:  <0.5%<>

• Cuttable on site to fit the tank height

• Wide voltage input:  4-70V

• Patented technology: Simple-installation flange

• Multi-signal output: RS485/RS232/Voltage/Resistance/Current

• On-site calibration and remote parameter configuration

• Replaceable for the original fuel level sensor

Functions

• Can cut off : Fuel sensor could be cut off according to fuel tank size on site, Avoid tolerances caused by wrong size

• High-precision : Recognition accuracy is less than 1mm, The sensor can identify the level fluctuation of less than 1mm.

• Simple installation : Patented design simple mounting flanges, Install the sensor does not need another dozen screw holes. Press button for full and empty calibration on site

• Wide input voltage, high and circuit protection : 4-70V wide input voltage range, make sure that the sensor is not under the influence of the input voltage. Multi circuit protection, reverse connection protection, short circuit protection.

• Multi-signal output : Voltage output (10-5V), current output (4-20mA), resistance output (0-500Ω). Digital signal output: RS232,RS485, Meet the remote monitoring and control while driving the car gauge
