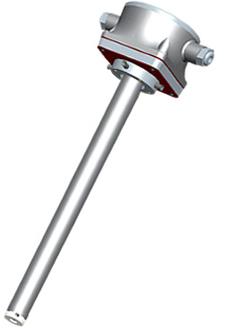

JT606D ( can be cut off on spot, resolution <1mm). Your best choice for remote fuel level monitoring.
Functions
Can cut off : Fuel sensor could be cut off according to fuel tank size on site, Avoid tolerances caused by wrong size
High-precision : Recognition accuracy is less than 1mm, The sensor can identify the level fluctuation of less than 1mm.
Simple installation : Patented design simple mounting flanges, Install the sensor does not need another dozen screw holes. Press button for full and empty calibration on site
Wide input voltage, high and circuit protection : 4-70V wide input voltage range, make sure that the sensor is not under the influence of the input voltage. Multi circuit protection, reverse connection protection, short circuit protection.
Multi-signal output : Voltage output (10-5V), current output (4-20mA), resistance output (0-500Ω). Digital signal output: RS232,RS485, Meet the remote monitoring and control while driving the car gauge
| Collect Elements | Capacitive |
|---|---|
| Input Voltage | 4~72V |
| Consumption | 0.13W/5V,0.19W/12V,0.38W/24V |
| Resolution | 1 mm |
| Digital | RS-232 EIA-485 CAN(Option) |
| Baud Rate | 2400,4800,9600,57600,115200 or Customizable |
| Output Signal | 0~5V(Voltage) , 4~20mA(Current), 10~500Ω(E,i;ated resostove) |
| Measure Extremely Long Range | 10CM~~150CM |
| Sealing | IP67 |
| Housing Material | Industrial Aluminum |
| Temperature-operating | 40°C ~~85°C |
| Temperature-storge | 40°C ~~105°C |
| Weight | 400G 50CM Length |
| Dimension | Length X 60mm x 60mm |
| Dimension(LxWxH) | Length×60×60mm |
|---|---|
| Weight | 400g (50cm Length) |
