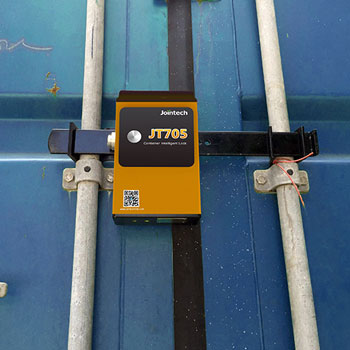

Contact SupplierSmartcontainer monitor device JT705, is a kind of device used for ISO container,refeer container, van truck application. It has the function real timetracking, unsealing by online or near field offline, detecting aroundenvironment of cargo, monitoring the lock posture, like: if the door positionor the inner temperature is changed, the system can send alerts. It can detectthe behavior of door dismouting, cargo leaving container, and can control theillegal door dismounting and cargo theft problem.
Key Features
Real-time Tracking
Remote or On-site Unseal
Environmental Perception: Temperature.Humidity.Light and so on
Condition Perception: Attitude.Rellover and Crash Monitoring and so on
| Real-time tracking | Location,speed,direction |
| Real-time condition monitoring | Seal or Unseal Status,Real-time Voltage |
| Seal or Unseal | Remote or On-site Unseal |
| Password mode | Dynamic and Static Password |
| Environmental Perception | temperature,humidity,light and so on. |
| Gesture Perception | Six-Axis Acceleration Sensor |
| Alarm | Illegal Unlocking |
| Over-time Unlocking | |
| Illegally Opening the Back Cover | |
| Low Voltage |
| Dimension(L×W×H) | 223mm×130mm×53mm |
|---|---|
| Length of String | 450mm |
| Weight | 4KG |
| Material | Lock:Aluminum;String: Carbon Steel |
| Working Temperature | -20℃----+70℃ |
| Storage Temperature | -40℃--+85℃ |
| Relative Humidity | 5%--99% |
| Charging Voltage | 5V |
| Working Current | Average Working Current:<120mah<> Average Standby Current:<4mah<> |
| Battery Capacity | 20000mAh |
| Protection Grade | IP67 |
| SIM Slot | Micro SIM Card |
| GPS\GSM Antenna | Embedded |
| Bluetooth Module | MHz:2.402GHz--2.480GHz |
| GSM Module | Quad Band:GSM800,GSM900, DCS1800,PCS1900 |
| Dimension(L×W×H) | 223mm×130mm×53mm |
|---|---|
| Length of String | 450mm |
| Weight | 4KG |
