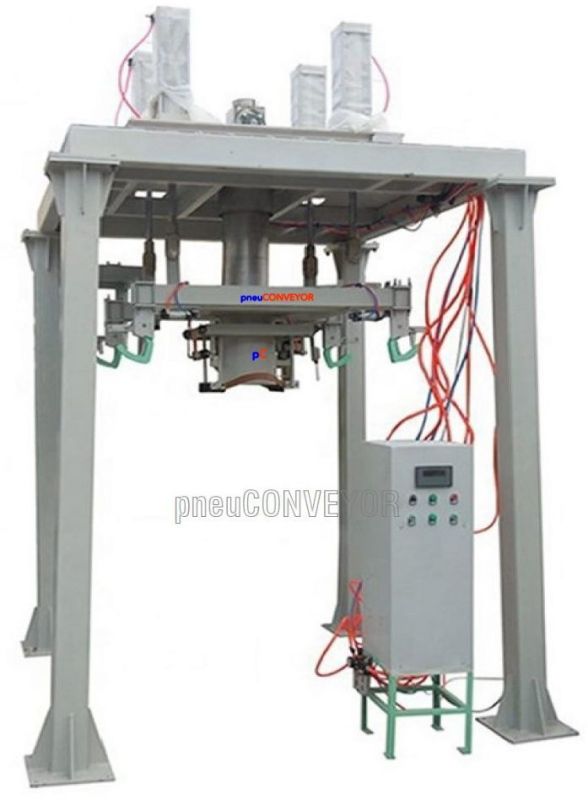

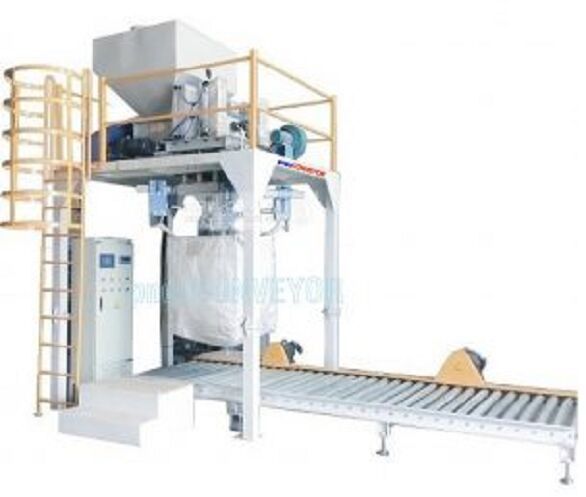

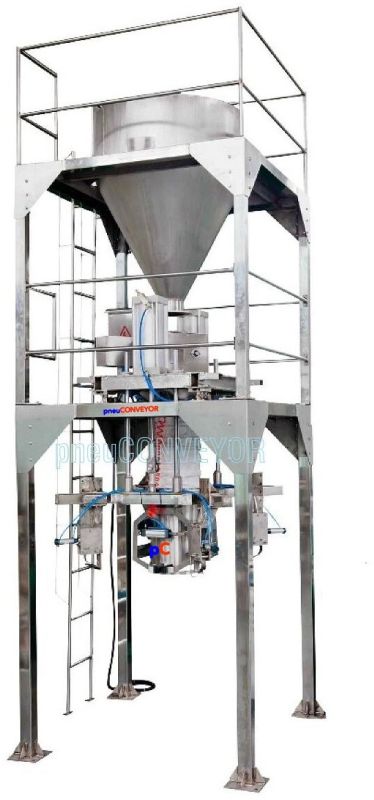

SS316 / SS304 (Gmp Model) Semi Automatic Jumbo Bag Filling Machine

DESCRIPTION : pneuCONVEYOR – Jumbo Bag Fillers insure fast, dust free and precise filling of Jumbo Bags. Available in a variety of configurations this ruggedly constructed filler allows its operators to easily insert, fill and remove bags. From simple volumetric filling to calibrated weighing, the pneuCONVEYOR – Jumbo Bag Filler is the unit that is custom built for your application.

Contact / Frame Materials:

• Carbon Steel
• 304 Stainless Steel
• 316 Stainless Steel

pneuCONVEYOR – has designed a number of jumbo bag loading frames for different applications and will aggressively respond to all bulk bag loading opportunities. The frames from pneuCONVEYOR are simple, sturdy frames of square tubular construction with four legs and permitting a great number of loading options, including the supports for these. A simple bungee cord bag neck damp offers a major advantage in being able to seal any bag neck from 13 inch diameter to 24 inch diameter without changing the bag neck spout. An inflatable cuff, which is common on competitive units, is offered as an option. The disadvantage of this device is that a single size cannot accommodate a wide range of bag necks. The versatile and simple single venturi power unit with venturi discharge provides a source of low pressure air for bag inflation. A filter for the air displaced from the bag is standard. Adjustment for different size bags is accomplished by raising or lowering the deck of the weigh frame.

FEATURES:

• Heavy duty square tubular frame with welded top section and bolted legs.
• Internal weigh frame with four load cells.
• Sturdy welded tubular steel frame.
• One piece fill spout.
• Inflatable inlet spout seal with regulator.
• Vibrating platform for consistent filling.
• Adjustable height bag loop supports.
• Adjustable width bag loop supports.
• Dust connection vent.
• Pallet stops.
• Enamel Paint.
• Custom configurations available.

Optional Items:

• Adjustable height frame.
• Load cells with isolation pads..
• Partial or fully automated operation.
• Bag inflation system with butterfly valves.
• Inline air filter / regulator with local shut off valve.
• Dust collection system.
• Pneumatic vibrator.
• Inlet flow control valve.
• Epoxy Paint.

Motors: • Standard: 220-440v TEFC motor enclosure

• Optional: Special motor voltages on request / Pneumatic
