JVNW Inc Tank SS Single Wall 8500GAL

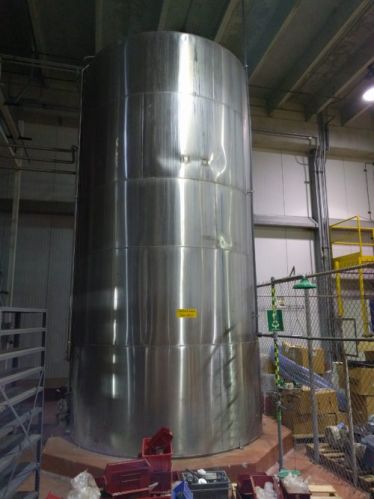

JV Northwest Incorporated, 8500 Gallon, 304 stainless steel, single wall mixing tank. Vessel Dimensions: 108" diameter x 218" straight wall. Equipped with a dome top, slant bottom, 22" x 16" side manway with bolt down cover, bottom sweep agitation powered by a 1 hp drive, thermowell, CIP spray ball supplied by a 2"OD 1½"ID Tri-Clamp fitting and 3½"OD 3"ID Tri-clamp style bottom side discharge. Side Access: (1) 7½"OD 3"ID Flange Top Access: (1) 3½"OD 3"ID Tri-Clamp (1) 3"OD 2½"ID Tri-Clamp (3) 2½"OD 2"ID Tri-Clamp
