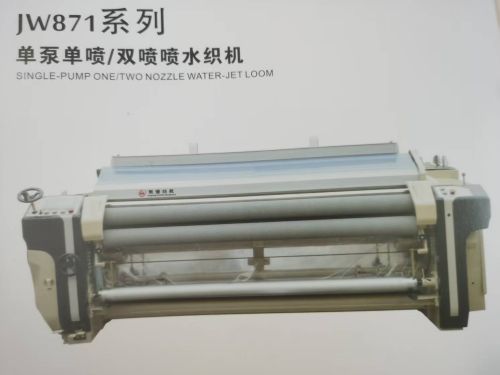

Automatic Electric jw871 Water Jet Loom, Color : Light White

₹ 7.24 Lakh / unit

Automatic GradeAutomatic,Fully Automatic,Manual,Semi Automatic
Driven TypeElectric,Mechanical
CertificationISO 9001:2008,
Power1-3kw,3-6kw
Supply TypeManufacturer
Preferred Buyer Location China only

Product Details

CertificationISO 9001:2008,
Voltage110V,220V,380V
Driven TypeElectric,Mechanical
ColorLight White
ConditionNew
Automatic GradeAutomatic,Fully Automatic,Manual,Semi Automatic
Power1-3kw,3-6kw
ApplicationProducing Fabric,Weaving

Product features

JW871 model is based on configure dual jet free weft storage models, which is applied to fabric textile production, such as high twist yam, ammonia-coated wire, the product have good performance to weaving high density fabrics, high speed, stability. This type can match dual jet, cam opening device, dobby opening device.

Main technical parameters

Optional breadth: 135,190,210、230、260、280、340、360CM Weft insertion rate: most 2280 meter per minute

Speed: design highest rev 1200RPM (The actual speed determined in accordance with fabric specifications) Number of heddle frame:2,4,6,8 pieces; most cam opening 10 pieces; most dobby 16 pieces.Installed power: 1.5~3.5KW

Range of weft density: 5 ~ 60 thread per cm
