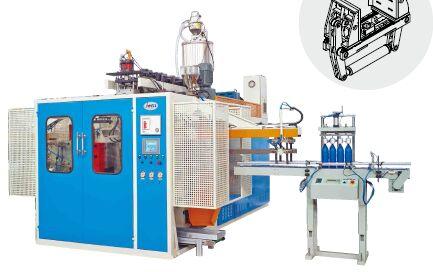

JWZ-BM02D HDPE/PP Blow Moulding Machine, Certification : CE ISO

Quotation Validity 30 days
Payment terms 30% advanced payment, balance payment T/T 10 days before the shipment.
Production time within 90 days after receipt advanced payment.
Delivery F.O.B. Shanghai, goods loaded into container, packing included
Guarantee 1 year
Environment Condition
Location Indoors
Power supply No dangerous area
Power 3-phase 4 wires sructure,380V/3P/50Hz
Total power 36KW
Average energy consumption 20KW—25KW
Oil pump motor power 7.5KW
Hydraulic system
Humidity degree â‰Â¤95%
Temperature 0-35℃
Cooling water â‰Â¤20℃, â‰Â¥0.3Mpa
Water consumption 5T/H
Air pressure 0.6Mpa
Air consumption 24m³/h
Suitable material HDPE/PP
Max container volume: 2L
The max. plasticizing capacity 70kg/hr-80kg/hr
NOTE The output varies according to the materials and the operation conditions.
Equipment list JWS65/25 Single screw Extruder
Continuous type Die head 1set
Mold open and close device 2set
Take out robot 2set
Hydraulic system 1set
Pneumatic system 1set
Electrical system 1set
Specifications of the Production Line
JWS65/25 Single screw Extruder
Screw
Diameter 65mm(double station)
L/D 25:1
Material 38CrMoAlA
Treatment Nitriding heat-treatment
Barrel
Material 38CrMoAlA
Treatment Nitriding
Heating control zones 4 Zones
Heating power 2.2KW×4
Cooling system By blower fan
Cooling power 0.25KW×4
Material of the body QT225
Gear type Helical gears
Material of the gear 20CrMnTi
Heat treatment of the gear surface Quenching
