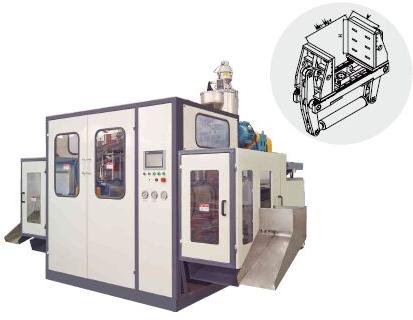

JWZ-BM05D HDPE/PP Blow Moulding Machine, Brand Name : Bekwell

Payment terms 30% advanced payment, balance payment tt 10 days before the shipment.
Production time
delivery f.o.b. Shanghai, goods loaded into container, packing included
guarantee 1 year
environment condition
location indoors
power supply no dangerous area
power 3-phase 4 wires sructure,380v3p50hz
total power 70kw
average energy consumption 42kw�45kw
oil pump motor power
hydraulic system servo pump
humidity degree �95%
temperature 0-35�
cooling water �20�, �0.3mpa
water consumption 5th
air pressure 0.6mpa
air consumption 24mâ³h
suitable material hdpepp
max container volume: 5l
the max. Plasticizing capacity 90kghr
note the output varies according to the materials and the operation conditions.
Equipment list jws8025 single screw extruder 1set
jws3525 single screw extruder 1set
moog100 parison controller 1set
blowing pin device 2set
continuous type die head 1set
mold open and close device 2set
take out robot 2set
hydraulic system 1set
pneumatic system 1set
electrical system 1set
specifications of the production line
jws8025 single screw extruder
screw
diameter 80mm(double station)
ld 25:1
