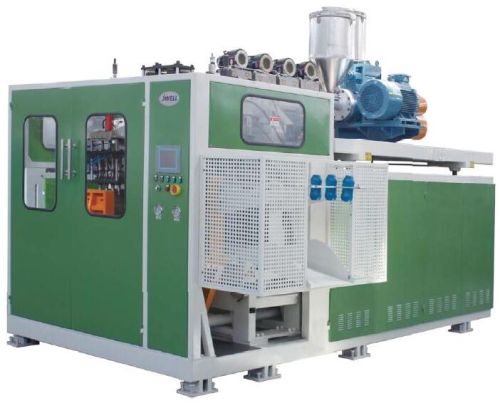

JWZ-BM12S HDPE/PP Blow Moulding Machine, Certification : CE ISO

Guarantee 1 year
environment condition
location indoors
power supply no dangerous area
power 3-phase 4 wires sructure,380v3p50hz
total power 94-102kw
average energy consumption 55.6kw—60.8kw
oil pump motor power
hydraulic system servo pump
humidity degree ≤95%
temperature 0-35℃
cooling water ≤20℃, ≥0.3mpa
water consumption 5th
air pressure 0.6mpa
air consumption 70m³h
suitable material hdpepp
max container volume: 12l
the max. Plasticizing capacity 80kghr-90kgh
note the output varies according to the materials and the operation conditions.
Equipment list jws8025single screw extruder 1set
b&r300 parison controller (奥地利贝加莱) 1set
blowing pin device 1set
continuous type die head 1set
mold open and close device 1set
take out robot 1set
hydraulic system 1set
pneumatic system 1set
electrical system 1set
diameter 80mm
ld 25:1
material 38crmoala
treatment nitriding heat-treatment
material 38crmoala
treatment nitriding
heating control zones 4 zones
heating power 3.7kw×4
cooling system by blower fan
cooling power 0.25kw×4
material of the body qt225
gear type helical gears
material of the gear 20crmnti
heat treatment of the gear surface quenching
bearings chinese famous bearing
lubricating system press system
cooling system equipped with separated cooling system
