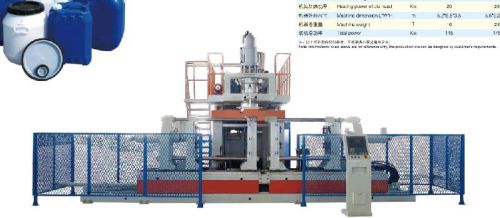

JWZ-BM30 HDPE/PP Blow Moulding Machine, Certification : CE ISO

₹ 54.42 Lakh / Set

CertificationCE ISO
Total Carbohydrate1 Year
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Lance Lee Tel:+86 178 2010 6288 WhatsApp/WeChat:+86 178 2010 6288 salgg@jwell.cn Water consumption 4T/H Air pressure 0.8Mpa Air consumption 60mÃ�ï¿½Ã¯Â¿Â½Ã�ï¿½Ã�Â³/h Suitable material HDPE/PP Max container volume: 30L The max. plasticizing capacity 100kg/hr-110kg/h NOTE The output varies according to the materials and the operation conditions. Equipment list JWS 80/25Single screw Extruder 1set MOOG100 Parison Controller 1Set Blowing pin device 1set Accumulate type Die head 1set Mold open and close device 1set Take out robot 1set Hydraulic system 1set Pneumatic system 1set Electrical system 1set Specifications of the Production Line JWS80/25 Extruder Diameter 80mm L/D 25:1 Material 38CrMoAlA Treatment Nitriding heat-treatment Material 38CrMoAlA Treatment Nitriding Heating control zones 4 Zones Heating power 4 KW Cooling system By blower fan Cooling power 0.25KW Material of the body QT225 Gear type Helical gears Material of the gear 20CrMnTi Heat treatment of the gear surface Quenching Bearings Chinese famous bearing Lubricating system Press system Cooling System Equipped with separated Cooling System Water circled cooling system Material Q235 Driving motor AC motor MADE IN CHINA Power 37KW Control System ABB inverter Auto loader 300Kg/h Die Heard "Accumulate type Die head (Including Heating Ring )" Heating Control Zone 4 zones Heating Power MAX 20KW Material of the die 38CrMoAlA Mold Opening and Clamping Device Platen size 740mm Max. mould size 550mm-650mm Max. die pin diameter 300

Additional Information

Payment Terms T/T
Packaging DetailsPower 3-phase 4 wires sructure,380V/3P/50Hz Total power 85K-92KW Average energy consumption 45K-52KW Oil pump motor power Hydraulic system SERVO MOTOR Humidity degree 95% Temperature 0-35 Water consumption 4T/H Air pressure 0.8Mpa Air consumption 60mÃ�ï¿½Ã¯Â¿Â½Ã�ï¿½Ã�Â³/h Suitable material HDPE/PP Max container volume: 30L The max. plasticizing capacity 100kg/hr-110kg/h NOTE The output varies according to the materials and the operation conditions. Equipment list JWS 80/25Single screw Extruder 1set MOOG100 Parison Controller 1Set Blowing pin device 1set Accumulate type Die head 1set Mold open and close device 1set Take out robot 1set Hydraulic system 1set Pneumatic system 1set Electrical system 1set Specifications of the Production Line JWS80/25 Extruder Screw Diameter 80mm L/D 25:1 Material 38CrMoAlA Treatment Nitriding heat-treatment Barrel Material 38CrMoAlA Treatment Nitriding Heating control zones 4 Zones Cooling system By blower fan Gearbox Material of the body QT225 Gear type Helical gears Material of the gear 20CrMnTi Heat treatment of the gear surface Quenching Bearings Chinese famous bearing Lubricating system Press system Cooling System Equipped with separated Cooling System Feeding block Water circled cooling system Material Q235 Driving motor AC motor MADE IN CHINA Power 37KW Control System ABB inverter Auto loader 300Kg/h Die Heard "Accumulate type Die head (Including Heating Ring )" Heating Control Zone 4 zones Heating Power MAX 20KW Material of the die 38CrMoAlA Mold Opening and Clamping Device Platen size 740mm-740mm Max. mould size 550mm-650mm Max. die pin diameter 300 mm Spaces between platens 400mm-900mm Platen moving stroke Clamping force 280 KN Clamping way driven by hydraulic
