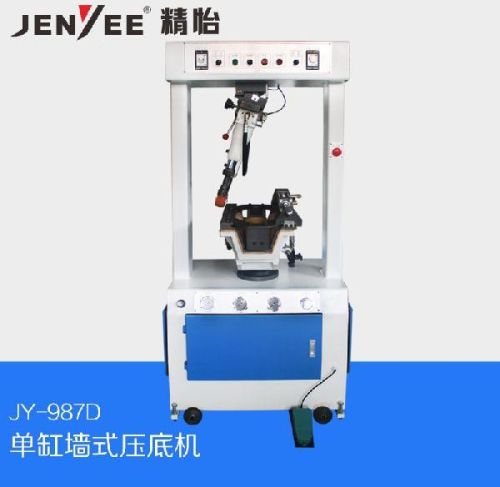

JY-987D Single Cylinder Gantry Pneumatic Walled Shoes Sole Attaching Machine

Jy-987d single cylinder gantry walled shoes sole attaching machine
1. The pressing pads for front-rear pressing are made of foaming pu material, and there are several different specifications for choosing, which can be applied to press different shoe shape.
2. Side pressing pad is using imported leather material, the fitting will change according to different shapes.
3. You can choose different pressing method according to different shoes to make all sides pressure even.
4. The design of automatic bias angles makes changing shoes movement easy.
5. The pneumatic loop goes through automatic water filter, which keeps the air the compressor dry to ensure low failure of air cylinder.
Model no. jy-987d
horse power 2hp
n.w. 500kg
g.w. be provided before shipment
dimension(l*w*h)mm 850*700*1800
packing size(l*w*h)mm 900*720*1820
capacity 1800pairs8hour
