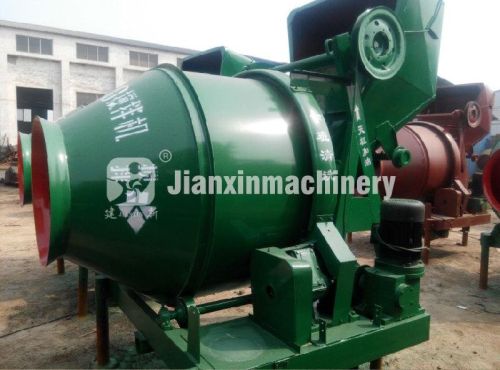

Jzc500 Concrete Mixer, Brand Name : Zhengzhou jianxin

JZC500 concrete mixer is composed by the feeding, mixing, transmission and water supply institutions, chassis and electronic control system and other components, is a new generation of concrete mixing equipment, the mixer with high quality mixing, reasonable structure, excellent production efficiency, easy to move, etc. , By the user's praise and affirmation.
Advantages:
1. Mixing quality is excellent, high production efficiency, strong stirring performance;
2. Ring gear drive, reliable transmission, the overall light weight;
3. Low energy consumption, reasonable structure;
4. Stable operation, easy operation;
5. Brand protection, quality assured.
Parameters
Feed capacity: 800 liters
JZC500 concrete mixer Pump power: 0.75 kW
Discharge capacity: 500 liters Water supply accuracy: � 2%
Productivity: 18-20m³ h Mixing cylinder speed: 13 rev min
Stirring lifting power: 11 kilowatts Aggregate maximum particle size: 6080 mm
To enhance the motor power: 5.5 kilowatts maximum speed: 20kg h
JZC500 concrete mixer with the front wheel, chassis four corners with legs, you can adjust the level of the mixer should be the work of the legs to support the stability of the machine.
�5�common problem,so that can help you to solve some problem
�How the JZC500 concrete mixer water supply system work?
A: start the pump, you can inject water into the mixing cylinder, stirring the water required per tank of concrete, the electronic control system in the time relay control pump running time to master, when the button to the "time control" position, the pump will Set the time to run and automatically stop. When the button is rotated to the "manual" position, it can be continuously supplied with water. The JZC500 also has a separate pipe for the outside of the mixing tank and the cleaning machine.
