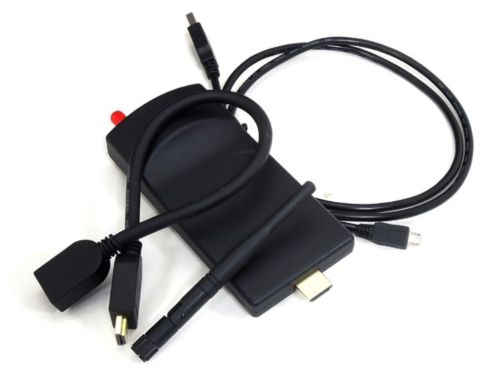

K2 Systems' K2 Quad Core System for Computer Use, Media Advertising

'K2 Systems' K2 Quad Core System is featured with the A20 Allwinner ARM Quad Core process and is powered by Android 4.4 KitKat. It can be used as digital signage, hoardings, Android PC and in many other applications where information is displayed over a screen.



Specifications:



Hardware Specification



CPU: Cortex-A7 Quad Core 1 GHz 32KB I-Cache, 32KB D-Cache and 128KB L2 Cache



GPU: Mali 400 MP2



DRAM: 1G Bytes DRAM (DDR3)



NAND Flash: 4G Bytes NAND Flash



Wi-Fi/Bluetooth: Broadcom WiFi 802.11 b/g/n (2.4GHz) & Bluetooth 4.0



Ethernet : Realtek 100M/1G IEEE802.3; RJ45 interface



HDMI Output: HDMI 1.4, up to 1080P@50/60fps decoding



USB: USB Device via micro USB connector



Audio: Audio Codec (Support 8KHz~192KHz DAC sample rate)



Power Input: Micro USB B Type



Operating voltage: 5V DC



Operating Current Max: 0.85 A DC



Operating temperature: 0 C to 40 C



Storage Temperature: -20 C to +60 C



Operating Humidity: 10-80% RH @ 40 oC (non-condensing)



Storage Humidity: 5-95% RH max @ 40 oC (non-condensing)



Weight: 100 gms



Size: 150mm x 61mm x 24mm (excluding power supply)



Software Specification



Operating System: Android 4.4.2 KitKat



Kernel-Version: 3.4.79



Media Stream Format: H.263, H.264



Display Resolution: Up to 1080p (EDID Supported)



Protocol: RTSP, HTTP, FTP



Media File Format: MP4, MOV, AVI, MP3



Video Engines: Decode: 1080p@60fps; Encode: 1080p@30fps



Deliverables:



K2 Dual Core Unit



WiFi/Bluetooth antenna



USB 2.0 A male-micro B male cable



HDMI 1.4 Cable Male to Female



High-Quality Velcro for mounting.



Applications:



Mini Android PC



Portable Smart Media Player



Media Streaming Dongle



Spice



Miracast



Internet media
