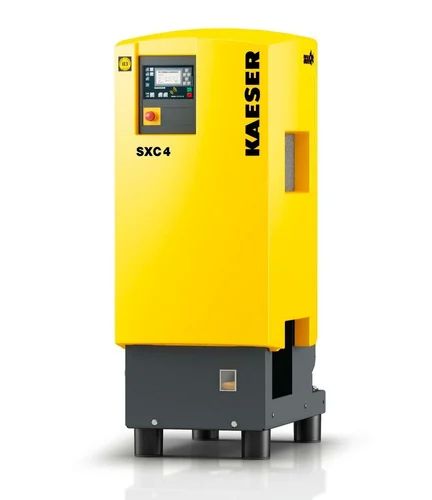

Kaeser SXC4 Screw Air Compressor

The all-in-one compact compressed air package

Compressed air systems of the SXC series have been designed for trades and crafts. On only 0.62 m², they comprise all components necessary for air supply under a single strong polyethylene cover: a rotary screw compressor with SIGMA-Profile, a refrigeration dryer and an air receiver.

Your advantages

Connect and go:

Piping and installation of our integrated packages takes little time. Simply connect this compact compressed air package to the power supply and compressed air distribution network and you’re ready to go - that’s it!

Protection from corrosion damage:

Thanks to the integrated refrigeration dryer, the SXC package delivers high air quality and protects your tools and equipment from corrosion damage.

Simple maintenance:

All maintenance and service points are easily accessible once the SXC’s removable enclosure which is made of rotational moulded polyethylene is effortlessly lifted away. The electronic condensate drain can be inspected via a grille. Maintenance is simple and effective.

Equipment

Complete unit

• Ready-to-run
• Fully automatic
• Super silenced
• Vibration-damped
• Double-skinned rotational moulded polyethylene enclosure
• Optimal accessibility of all service points after cover removal

Sound insulation

• Sound enclosure
• Anti-vibration mounts
• Dual anti-vibration mounts

Electric motor

• Energy-saving motor (IE2)
• Quality German manufacture
• IP 54
• Insulation class F for greater power reserve

Rotary screw airend

SIGMA Profile rotors require approximately 10 to 20 percent less energy than conventional rotors of the same air delivery capacity.

V-belt drive

• Maintenance-free belt
• No re-tensioning

Fluid and air flow

• Honeycombed dry air filter
• Inlet with check valve
• Pneumatic venting valve
• Cooling fluid tank with separately installed separator cartridge
• Pressure relief valve
• Minimum pressure/check valve
• Micro-filter in the cooling fluid circuit

Cooling Air-cooled

• Aluminium cooler for cooling fluid with separate fan motor
• Second fan on drive motor shaft
• Automatic warm run control (only active at very low loads)

Receiver

• Internally coated
• Electronically controlled condensate drain

SIGMA CONTROL BASIC controller

• Electronic control and monitoring system
• Icons
• Large display
• Start-Stop control
• Monitoring of: Direction of rotation, system pressure, airend discharge temperature, refrigeration dryer
• Measured data displayed: Network pressure, cut-out pressure, airend discharge temperature
• Status data displayed: System state, active fault, maintenance due
• Also displayed: Counter for service, load and operation hours
• Adjustable service interval
• Pressure and temperature unit selection (bar/psi/ MPa, °C/°F)
• Individually reducible nominal system pressure
• Emergency stop switch
• "Motor running" floating relay contact
• Electronic pressure transducer

Electrical components

• Control cabinet to IP 54
• Automatic star-delta contactor combination (above 3 kW)
• Overcurrent trip
• Control transformer

Refrigeration dryers

• Control cabinet to IP 54
• Automatic star-delta contactor combination (above 3 kW)
• Overcurrent trip
• Control transformer
• Contains fluorinated greenhouse gas R-134a
