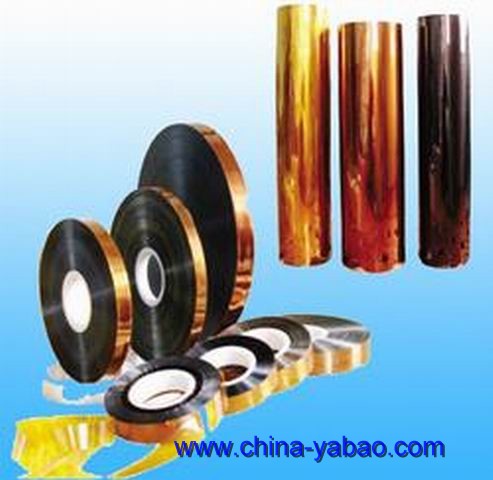

Kapton Adhesive Film, Brand Name : YB

Scope
the polyimide film is produced by adopting “doctor-blading process”. It possesses hot-resistant, radiation resistant and excellent dielectric performance and applies to motor grade h. Electrical insulation as well as the electric engineering insulating materials for other usage.
specifications
appearance: smooth and bright film surface. The defects of folding, broken, particulate air bubble, pinpoint and foreign impurities, tidy edges and non damage the film provided in rolling.
hn polyimide film has the excellent balance of electrical, thermal, mechanical, physical, and chemical properties over a wide range of temperatures as low as -69°c (-452°f) and as high as 400°c (752°f).
characters
* class h insulation and heat resistance.
* excellent dielectric performance.
*higher mechanical strength, better tear resistance and flexibility.
application
hn polyimide film can be used in a variety of electrical and electronic insulation applications: wire and cable tapes, formed coil insulation, substrates for flexible printed circuits (fpc), motor slot liners, magnet wire insulation, transformer and capacitor insulation, magnetic and pressure-sensitive tapes, and tubing.
dimension
film thickness: 0.013mm, 0.025mm, 0.040mm 0.05mm, 0.075mm, 0.100mm, 0.125mm, 0.150mm, 0.175mm, 0.200, 0.225mm, 0,25mmfilm width: 6mm to 1040mmspecial thickness or width can be supplied according to customer.
properties
properties
value
tape color
amber
overall thickness
0.06mm
backing thickness
0.025mm (1mil)
standard length
33m (36yds)
insulation class
c (>180°c)
peel strength
≥6.2 n/25mm
tensile strength
≥115 n/25mm
elongation
≥55 %
breakdown voltage
≥5 kv
resistivity
≥1.0x1012 ohm
our factory competitive advantages
*well competitive prices and high quality control
*prompt delivery
*customer's design and logo are welcome
*fit for gifts and premiums
*earth-friendly products
*in a variety of design
*small order acceptable
*oem accepted
about factory
jiangsu yabao insulation material co., ltd. Was established in 1986, specializing in producing insulation materials: i.e.
polyimide film series:
polyimide film 6051
corona-resistant polyimide film (cr film)
polyimide film with f46 (fep) tape
adhesive tape series
polyimide film with acrylic adhesive tape
polyimide film with silicone adhesive tape
composite material series
composite material (nhn, nmn)
mica insulation material (mica tape, mica foil and mica board
packing, mark, preservation and transportation
1. The film should be provided in rolls and wound up to the pipe core, each roll is well packed and loaded with plastic bag to be placed into dry and clean box.
2. The each box packing should be marked with the type, product specification, size, lot number, gross weight, net weight, date of manufacture, name of the manufacturer and the product acceptances certificate is attached. At the same time the painting words of damp-proof collision-proof etc.
3. The should be pressured in dry and clean room, the preservation period from the date of production is two years and can still be used when it is qualified in case of the preservation period is exceeded and checked according to standard.
4. During the preservation and transportation, damping and mechanical damage should be avoided.
