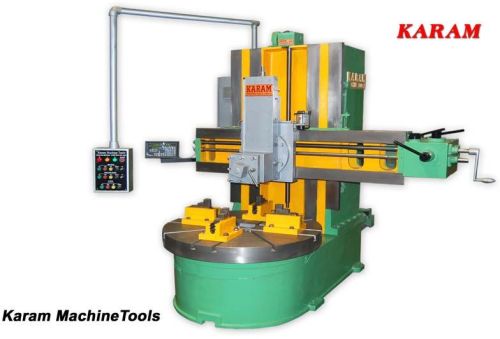

We are specialized among Manufacturers of Vertical Lathe Machine. Our premium quality products are widely demanded by several industries like Automobile, Engineering, Steel, Electrical and many more. We serve quality product such as Portable Vertical Lathe Machine, which have excellent energy efficiency and tolerant power. Our Vertical Double Head Boring Machine is made up of quality raw material with proper dimensional accuracy. They are rust free and have high tolerant power. We also serve products as per customer specification with proper assemblage. Our products are highly durable and available at reasonable prices.
Standard Accessories
SPECIFICATION | UNIT | VTL-1 | VTL-1.2 | VTL-1.5 | VTL-2 | VTL-2.5 | VTL-3 |
Table Diameter | mm | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 |
Max. Turning Dia | mm | 1200 | 1350 | 1750 | 2250 | 2750 | 3250 |
Working Height Under Cross Rail | mm | 700 | 1000 | 1200 | 1500 | 1700 | 2000 |
Ram Heads on Cross Rail | No. | One | One | One | One | One | One |
Vertical Travel of Ram Head | mm | 450 | 550 | 650 | 750 | 800 | 900 |
Swivel Angle of Ram Head | Deg. | +/-35 | +/-35 | +/-35 | +/-35 | +/-35 | +/-35 |
Table Speeds | No. | 5 | 5 | 5 | 6 | 6 | 6 |
Range of Table Speeds | RPM | 9 to 90 | 9 to 90 | 9 to 90 | 5 to 40 | 3 to 30 | 3 to 30 |
Feeds for Horizontal & Vertical Travels | No. | 6 | 6 | 6 | 6 | 6 | 6 |
Range of Feeds, Horizontal & Vertical | mm/min | 1.5 to 9 | 1.5 to 9 | 1.5 to 9 | 1.5 to 9 | 0.5 to 5 | 0.5 to 5 |
Main Motor Drive | H.P. | 7.5 | 10 | 15 | 20 | 25 | 30 |
Motor for Vertical Travel of Cross Rail | H.P. | 2 | 2 | 3 | 3 | 5 | 5 |
Motor for Rapid Traverse | H.P. | 2 | 2 | 3 | 3 | 5 | 5 |
