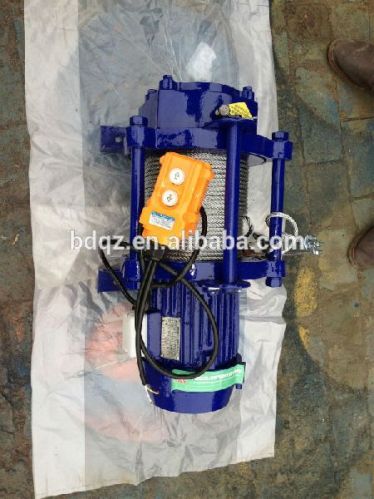

KCD Multifunctional Electric Motor Winch Hoist

Kcd multifunctional electric hoist is a steel wire rope hoist for lifting goods, the capacity is from 0.3t to 2t, the length of wire rope is from 30m to 60m more,the usage is pulling and lifting,except exclusive-use, also can match-use with electric trolley and plain trolley, geared trolley, these trolleys with simple structure, light weight, easy to load and unload.electric lifting hoist. Be widely used in warehouse, construction and many kinds of producing-line. The product has the characteristic brake promptly,small volume,light, compact, convenient and easy to maintain.   model:kcd-300kg standard capacity:300-600kg lifting speed:6-12m/min 8-16m/min tape brake motor model:zdya motor power:0.6kw motor r.p.m:1380 r voltage:380v connected persistency rate (jc):40% classification group of mechanisms:m4 wire rope length:30meters wire rope type:d-6x19-5.1 weight:42kg   model:kcd-500kg standard capacity:500kg-1000kg lifting speed:6-12m/min 8-16m/min tape brake motor model:zdya motor power:1.1 kw motor r.p.m:1380 r voltage:380v connected persistency rate (jc):40% classification group of mechanisms:m4 wire rope length:60meters wire rope type:d-6x19-6.2 weight:55kg   technical data:   lifting capacity(kg) 500-1000 engine power (kw) 1.1 electric power source three phase voltage(v) 220 the specification of wire rope d-6x 19- 6.2 weight of complete machine
