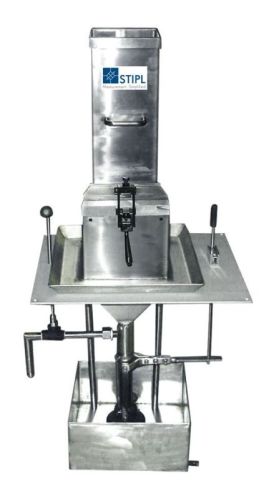

STIPL Semi Automatic KCL Hand Sheet Former, Sheet Size : 165mm X 165mm

₹ 1 - ₹ 10,000 / Unit

Automatic GradeSemi Automatic
Sheet Size165mm X 165mm
Brand NameSTIPL
ApplicationFor the Preparation of Laboratory Sheets of Pulp for Paper Testing
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 2 Years
Nature of Business Manufacturer
GST No. 09AAQCS9142J1ZM

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Automatic GradeSemi Automatic
Sheet Size165mm X 165mm
Number Of FlowerSheet Forming Machines
Country of OriginIndia
Stock Container and dewatering vesselStainless Steel
Suction Height800 Mm.
ApplicationFor the Preparation of Laboratory Sheets of Pulp for Paper Testing
Brand NameSTIPL
Grid Plate with Wire Screen100 mesh (ASTM std. )150 mesh (TAPPI std.) ,
Standard AccessoriesStirrer, Couch Roll, Couch Plate, 10 Nos. Ss Drying Disks Mirror Polished One Side, 10 Nos. Thermose
Drainage Time3.8 ± 0.2 sec., 20 0C ± 1 0C

Definition : when pulp suspension passed through a standard wire mesh fitted on a circular grid plate under standard barometric height to provide the necessary vacuum over the grid plate to form the paper sheet under uniform parameter such as consistency , temperature , water volume is defined as lab hand sheet making.

Device Description : Sheet Former of KCL model is intended for production of laboratory sheets for physical tests The design of the dewatering vessel gives a constant flow across the entire wire, thus permitting extremely uniform sheets. The Sheet Former is easy to install in a laboratory and produces square sheet size 165x165 mm.

Test Description : by opening the hand valve the former column is half filled with water and suspensions, which has been prepared in the disintegrator , and equalizer is added . Then the former column gets filled up until the mark is reached . the agitator is used to swirl the content of the column , once the settling phase is finished , the second hand lever gets moved to open the drainage valve and the water is drained through the forming screen. The freshly formed hand sheet remains on the screen. The former column can then be opened and two blotting papers are placed on the top of wet hand sheet. With the stainless steel roller the sheet is couched and then carefully be removed from the screen and further processed with the sheet press, the drying rings or the speed dryer.
