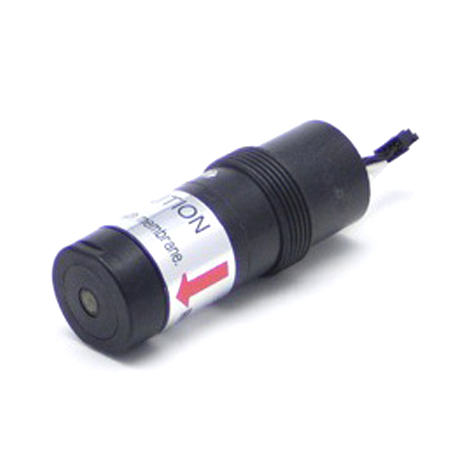

KDS-25B GS Yuasa Dissolved Oxygen Sensor, Brand Name : Figaro

Gs yuasa dissolved oxygen sensor kds-25b
features:
* long life
* virtually no influence from co2
* no external power supply required for sensor operation
* no warmup time is required
applications:
* water quality control
the gs yuasa dissolved oxygen sensor kds-25b is a unique galvanic cell type sensor which was developed for water quality control. Its most notable features are long life expectancy and it is not influenced by co2.
Specification:
measurement range: 0~80mgl dissolved oxygen
accuracy in water at 25℃±1℃: ±5% (full scale)
operating conditions
atmospheric pressure: 81~203kpa (corresponds to 10m of water depth)
temperature: 5~35℃
relative humidity: 10 ~ 90%r.h. (no condensation)
thermal time constant: 10 min. Or less
initial output voltage in clean air under standard test conditions: 8.0~15.0mv
standard test conditions
atmospheric pressure: 1013±5hpa
temperature: 25℃±1℃
relative humidity: 60±5%
