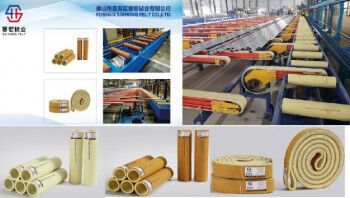

Kevlar Roller, Thickness : 6-20mm, Packaging Type : yellow

pick-up and the first-stage cooling table. In pick-up area, the abrasion is much bigger as the transfer speed is higher, whereas it requires higher temperature resistance and strength.
Para-Aramid belt is very good in temperature resistance (500°C) and anti-abrasion (with resin treatment options it is even better), and the 3-layer scrim options enables the real endless belt to stand heavier stretch, hence the belt is competent using in the first-stage cooling table for heavy duty extruders.
Technical Data:
Color: Yellow, Working Temp.:500°C for long time and 500°C for short time (within 15 min)
Overall Thickness: 5mm-15mm with regular products of 6mm, 8mm, 10mm, 12mm
Width: 60mm-2000mm with regular products of 60mm, 70mm, 75mm, 80mm, 100mm 120mm, 160mm,
Length: 1,800mm-30,000mm
Density: For felt part 350g/m2 • mm as standard, and customized up to 500g/m2 • mm
