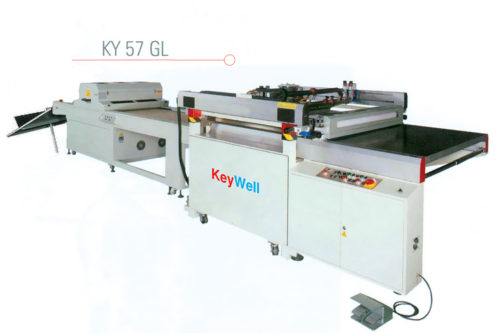

KEYWELL AUTOMATIC SCREEN UV MACHINE

Max. Print Area : 550 X 750 mm
Printing table size : 800 X 1000mm
Max. screen frame : 1100X1100 mm
Printing speed : 780p/h
Power Consumption : 3.375 kw
Compressed Air Pressure : 6’ 8KG/cm2
Country of Origin : Taiwan
Max. conveying width
of UV Dryer : 900mm
Lamp’s : 3 Units
Lamp’s power : 5.6 KW
Ttotal Power : 18.1 KW

Key Features
Application: for UV partial varnish, overall varnish, transfer paper,
dashboard, name plate, scratch card, sticker, membrane switch and all kind
of non-deforming materials.
Features & functions：
KEYWELL Precise Table Sliding Screen Printer designed with strengthened
structure and elegant configuration.
The speed of squeegee and flood coater can be adjusted separately.
Synchronous off-contact structure is adjustable for different sizes of frame.
Equips 1~2 times continuous printing function to make printing output with
solid effects.
High precision vacuum printing table make the printing even.
Use top grade linear rail for transmission of printing head and printing
table.
Safety bar and emergency stop switch for security.
